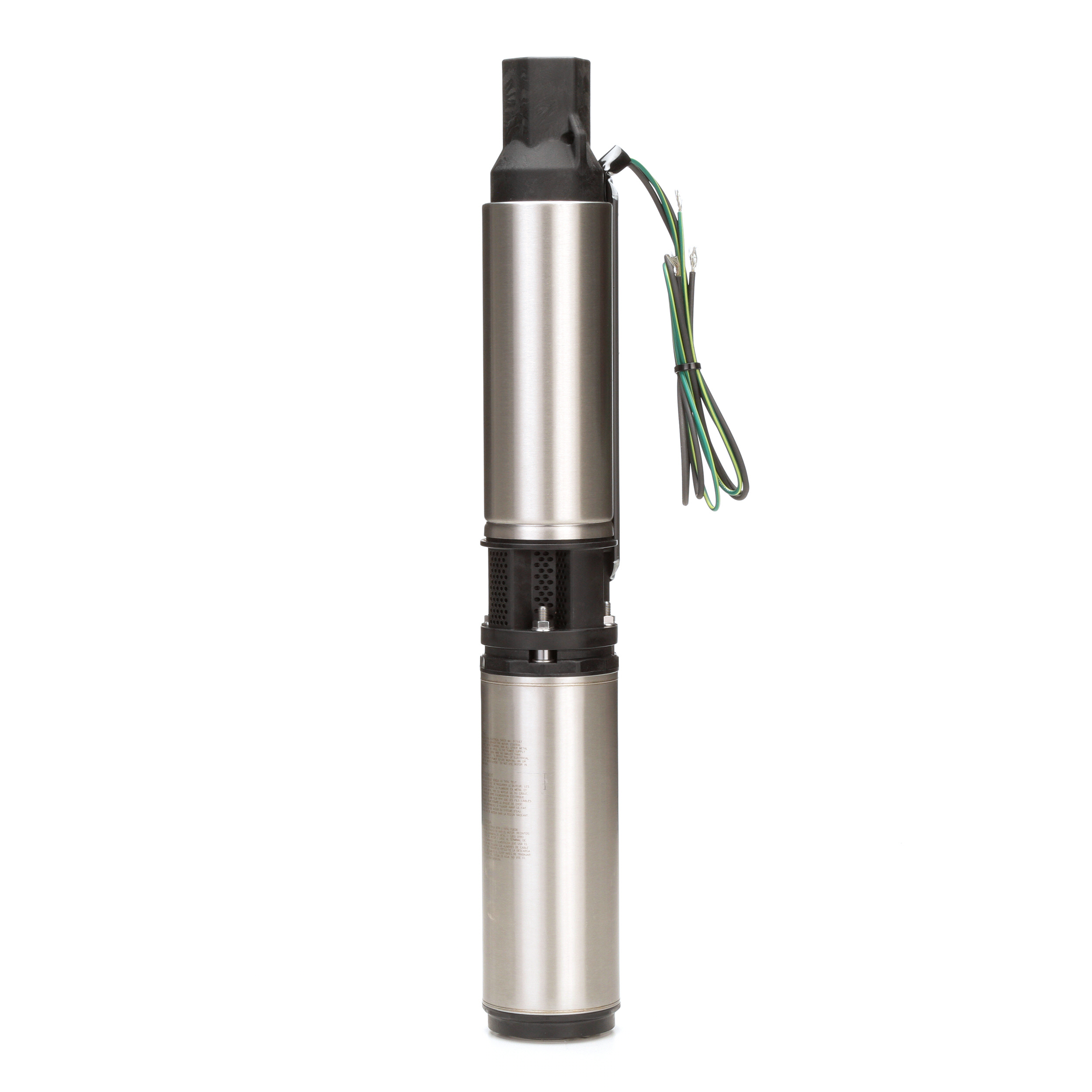

Model 452 Submersible Well Pump - 3 wire, 11 GPM, 230 V

Our turbine well pumps are backed by 100% wet testing. We have tested this series to resist up to 3,500 lbs of pull force, it exemplifies strength and resilience. Proudly paired with our 4 inch submersible motor, it ensures seamless integration for optimized functionality. Designed with the contractor in mind, it prioritizes practicality and efficiency at every turn.

Product Details

Submersible pumps are rated by the number of gallons per minute to the well head from various water level depths. Models rated at 7 GPM (26.5 LPM) are for small homes, cottages and light water usage demands, whereas the 11 and 19 GPM models are for the average residential size home and family. 1/2 thru 1 HP motors used on Zoeller submersible pumps are designed to meet NEMA standards. 1/2 HP models are available in either 115 or 230 volt. The 3/4 and 1 HP models are available in 230 volt only. All models are available with either a 2 or 3 wire connection plus ground wire. 3 wire models require a control box.



Features and Benefits
  • 1-1/4" cast iron discharge head prevents cross-threading and cracking in the well
  • Upgraded full staging for improved performance
  • Floating impeller stack easily passes debris and prevents damage
  • Integrated spider bearing for tighter pump shaft security
  • Well diameter: 4″ (10 cm) minimum
  • 1 year limited warranty
Product Specifications

Shipping Weight:

33 kg

Shipping Dimensions:

Height 4 1/4 cm   x   Width 4 1/4 cm   x   Length 35 cm.

Voltage:

230

Horsepower:

1

Stage:

15

Motor Type:

3 wire plus ground

Hertz:

60

Amps:

8.20
