15′ Narrow Angle Level Control Switch

  • For use with control panels and alarms in non-potable water applications
  • Standard variable level switches rated for 115/230V, 5 Amps
  • Standard switches include 18/2 Type SJOW CPE cord
  • View More Details

The narrow angle control float allows you to adjust the on/off points in the basin optimizing pump run time.  The floats signal to the control panel to activate the nonautomatic pump based on the liquid level for a variety of pumping applications. The float switch cord is 15′.

Product SKU:

10-1880

UPC:

053514177737
2
year limited
warranty
Categories: Brand:
2
year limited
warranty

Have a question? Give us a call!

877-710-7867
15' Narrow Angle Level Control Switch

The narrow angle control float allows you to adjust the on/off points in the basin optimizing pump run time.  The floats signal to the control panel to activate the nonautomatic pump based on the liquid level for a variety of pumping applications. The float switch cord is 15′.

Product Details

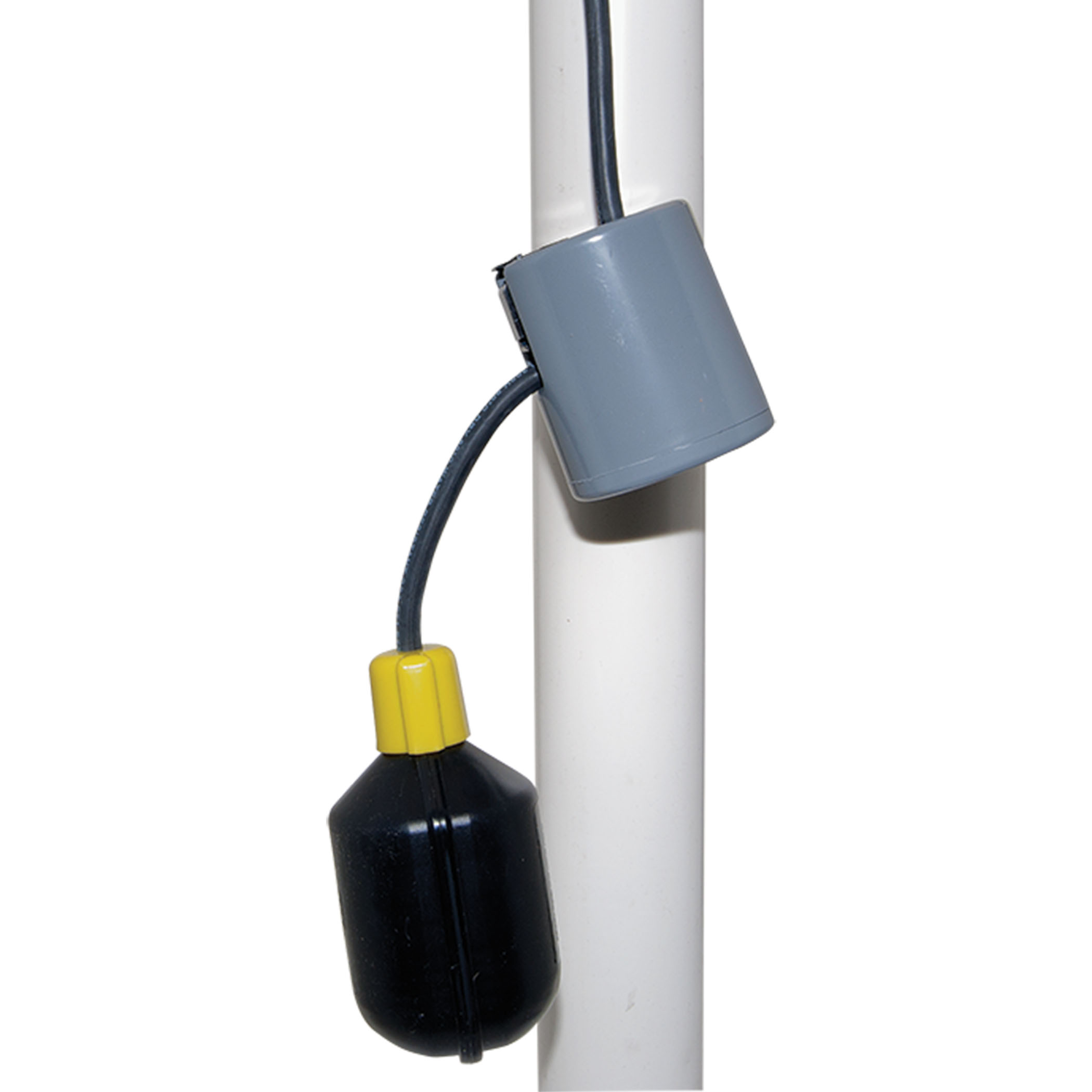

Our narrow angle level control float are used to monitor liquid level conditions and activate control panels or alarms.  This version includes a 15′ cord and weight.  They are typically installed in dose tanks, sump pump basins, holding tanks, lift stations, and other non-potable water applications. The variable level control switch is normally open when hanging vertically above the liquid level. The switch should be mounted to the weight that is provided, giving the switch a pivot point. When the water level rises and the switch is raised a few degrees above the horizontal position, the switch closes, completing the circuit to the control panel or alarm. The float that encases the mechanical switch is constructed of durable PVC/polypropylene.

Features and Benefits
  • Switches are rated for environments up to 140° F (60° C)
  • Mounting Method: Adjustable weight
  • Comes with a 2-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
Product Specifications

Shipping Weight:

3 kg

Shipping Dimensions:

Height 5 cm   x   Width 8 cm   x   Length 8 cm.

Cord Length:

15' (5 m)

Amps:

5

Operation:

Normally Open

On/Off Points:

Variable level float switch, customer sets
