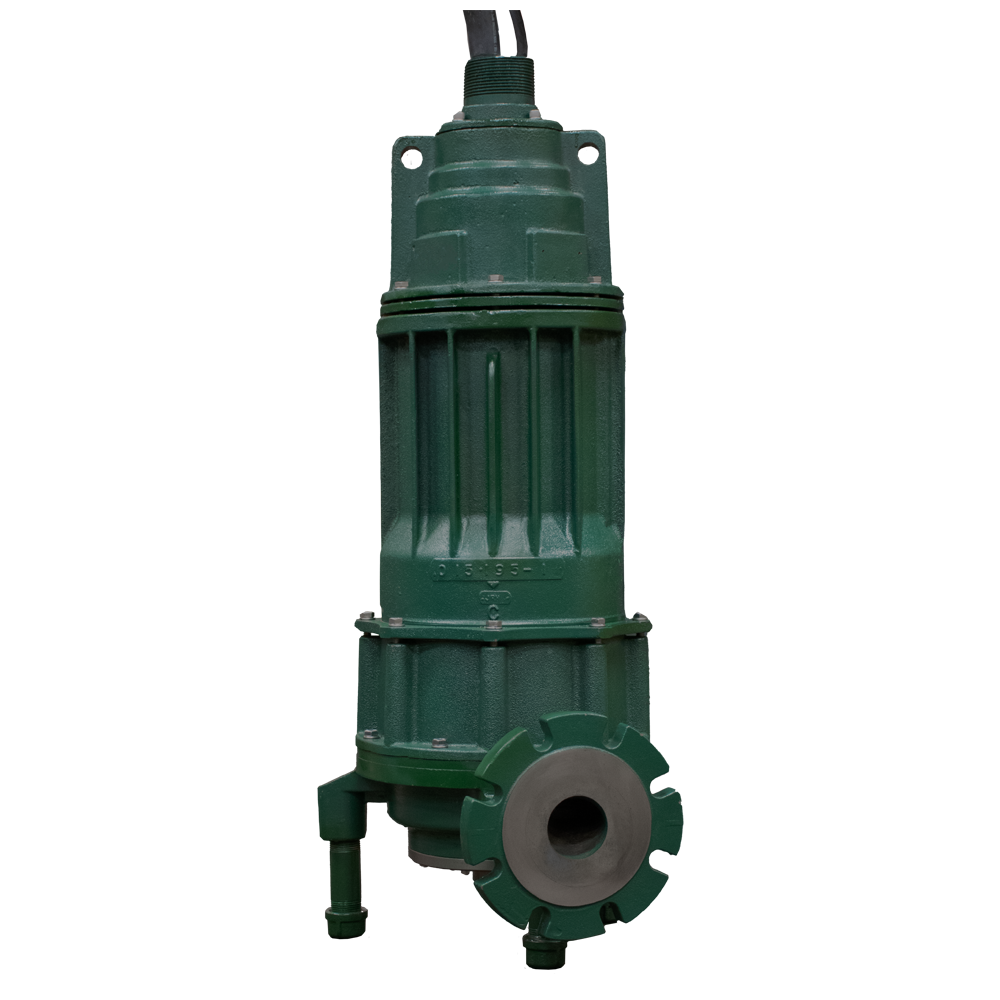

X72 HD Grinder Series

Product Details

APPLICATIONS

• Sewage lift stations
• Housing developments
• Low pressure sewer systems
• High vertical lift or long force mains

SPECIFICATIONS

PUMP:

• 440 stainless steel cutter and plate hardened to Rockwell C55-60
• Discharge: 3” or 4″ flanged horizontal
• Seals – dual mechanical carbon/rotary, ceramic/stationary, Buna-N elastomers
• Moisture detection system
• Construction – cast iron ASTMA A-48, Class 30, 30,000# tensile strength, protected with a corrosion-resistant, baked-on epoxy powder coating
• Balanced, concentric pump housing and impeller
• Attaching hardware – 304 stainless steel
• Square ring seals – Buna-N
• Impeller – ductile iron vortex design
• Optional:
  • Trimmed impeller
  • Silicon carbide seal(s)
  • Viton square ring seals
  • Additional cord length
  • Rail systems

MOTOR:

• Stator – Class F insulation and lead wires, Nema B design
• Thermal sensor with leads
• Housing – cast iron, oil-filled
• Ball bearings – upper and lower high carbon chromium steel
• Power and sensor cable length – 25′ (7.6 m)
• cCSAus rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
• Tested to FM standards 3600 and 3615 by CSA

Note: Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.

Features and Benefits

• 3” or 4″ flanged horizontal discharge
• Seals – dual mechanical carbon/rotary, ceramic/stationary, Buna-N elastomers
• Ball bearings – upper and lower high carbon chromium steel
• Power and sensor cable length – 25′ (7.6 m)
• cCSAus rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
• Tested to FM standards 3600 and 3615 by CSA
• 3 Phase, 10 and 15 HP options
