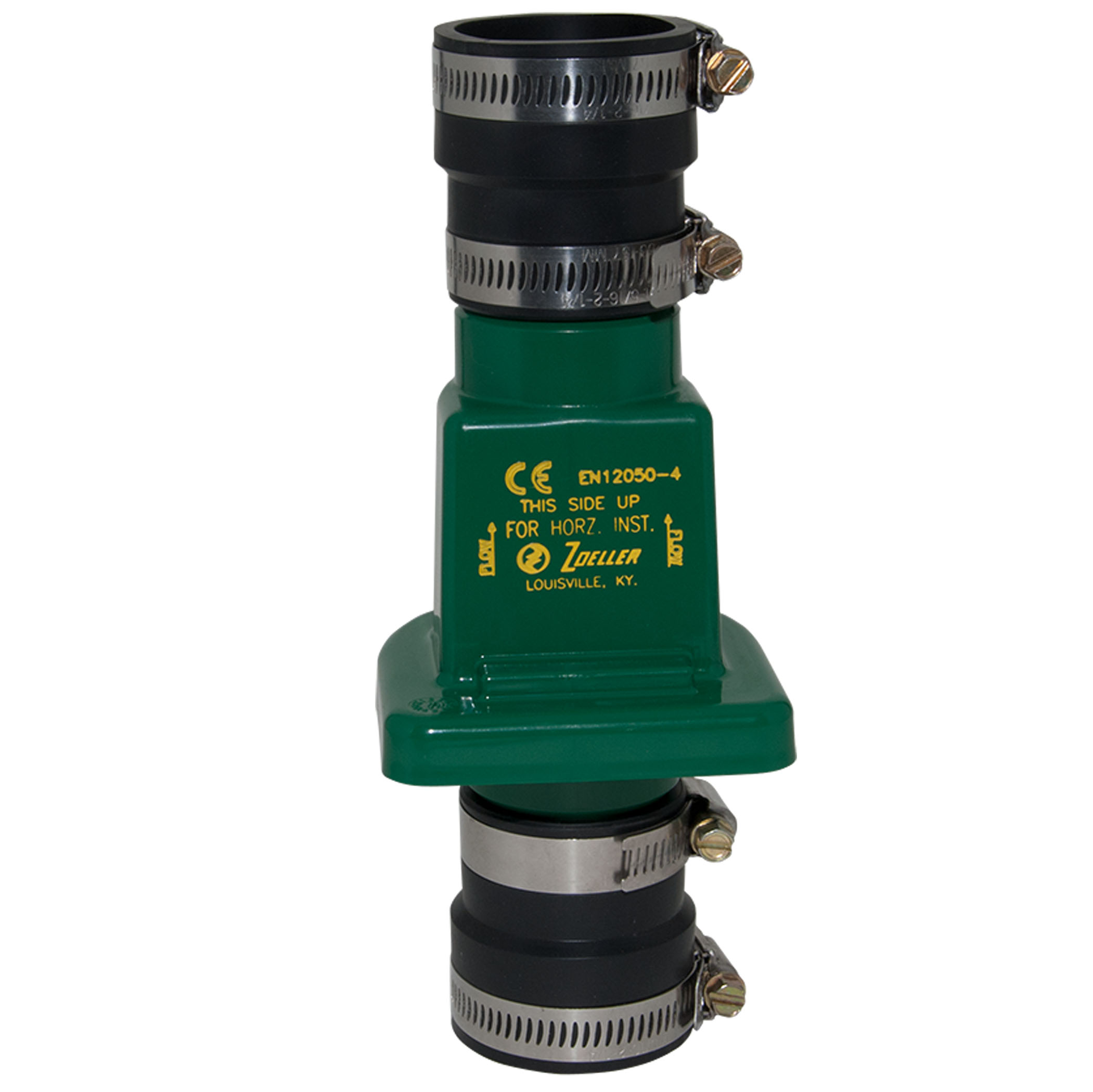

1-1/4″ or 1-1/2″ Slip x Slip Check Valve

  • Can be used with 1-1/4" or 1-1/2" discharge piping
  • Able to be installed in a vertical or horizontal orientation
  • Easy installation in a new or existing PVC discharge line
  • View More Details

The standard 1-1/4″ – 1-1/2″ slip x slip full flow check valve is designed for basement sump pump or drain pump applications. This valve can be installed in the vertical or horizontal orientation in the discharge line.

Product SKU:

30-0181

UPC:

053514122317
1
year limited
warranty
Categories:
1
year limited
warranty

Have a question? Give us a call!

877-710-7867
30-0181
148130 Steel Well Point

The standard 1-1/4″ – 1-1/2″ slip x slip full flow check valve is designed for basement sump pump or drain pump applications. This valve can be installed in the vertical or horizontal orientation in the discharge line.

Product Details

Our standard 1-1/4″ or 1-1/2″ slip x slip full flow check valve for basement sump or drain pump applications.  The rubber coupling with stainless steel clamps on each side of the check valve allow for quick and easy connection to SCH40 PVC.  It can spliced into an existing line very easily as well.  It is also designed to be used in either a vertical or horizontal orientation.   The full-flow design of this check valve allows the internal flapper to open to match the internal diameter of the connected line.  So you never have to be concerned about the pump passing solids that the valve is unable to handle. Peace of mind right out of the box!





Features and Benefits
  • Rated for 4.3 PSI, 10 ft. of head at 130°F
  • Designed to reduce water hammer
  • Connect to discharge pipe with rubber couplings or solvent weld directly to discharge pipe
  • Neoprene gasket and flapper, weighted with stainless steel backing plates and stainless steel rivet
  • PVC plastic check body ultrasonically welded together
  • Flapper bends over a radius to lengthen life of flapper hinge
  • 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications

Shipping Weight:

0.9 kg

Shipping Dimensions:

Height 6 3/4 cm   x   Width 17 1/2 cm   x   Length 9 3/4 cm.

Installation:

Horizontal or vertical installation

Valve Type:

Rubber Coupling, Solvent Weld

Valve Size:

1-1/2", 1-1/4"

PSI:

25 PSI (58' of head), 4.3 PSI (10' of head)

Color:

Green
