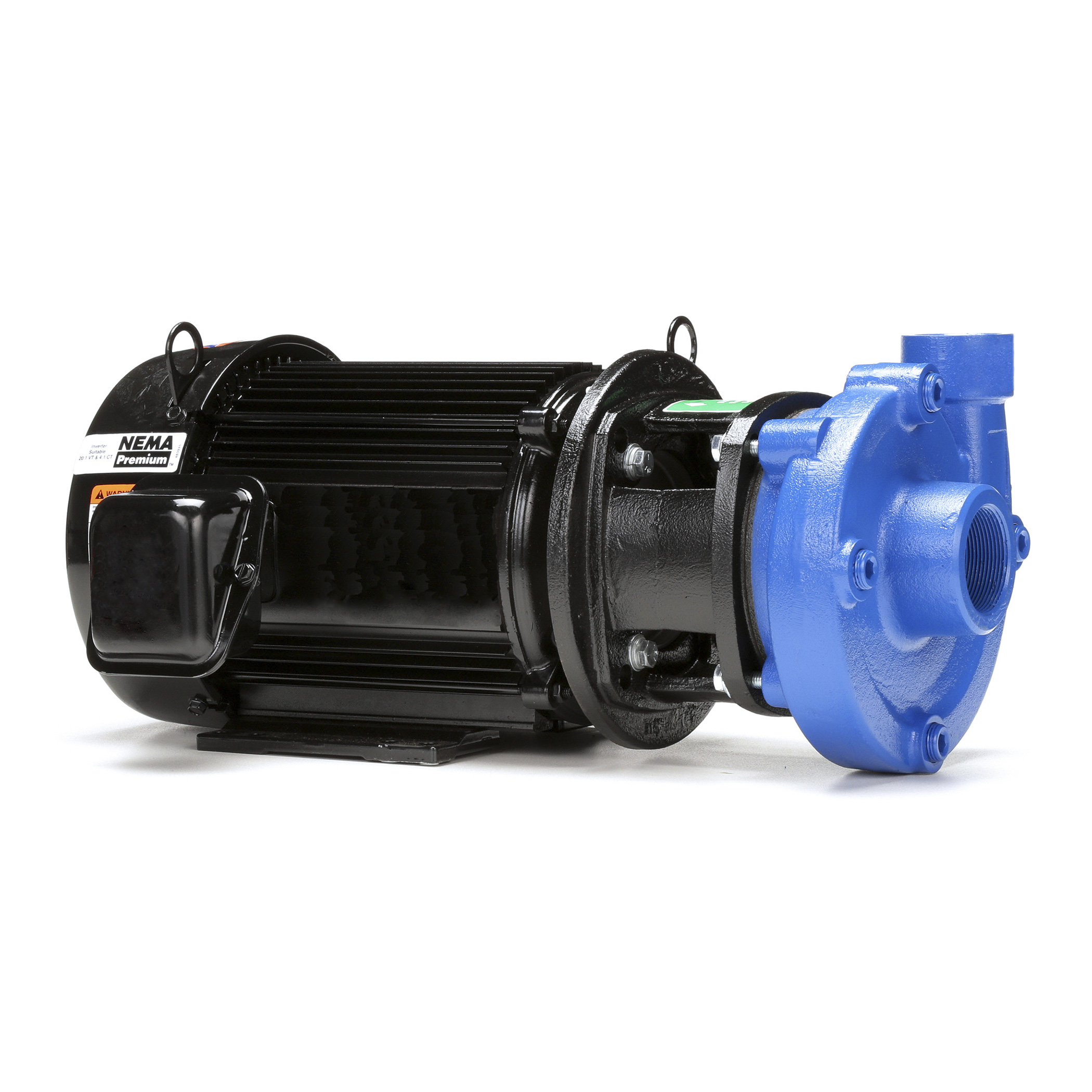

C5 Straight Centrifugal Pump

  • High flow and high head designs
  • Investment cast 316 stainless steel construction with Viton® seals or cast iron construction with Buna seals
  • Stainless steel impellers with solids-handling capacity of ⅛” – 3/16″ (3 mm – 5 mm)
  • View More Details

Our C5 Straight Centrifugal Pump is constructed with precision using investment cast 316 stainless steel with Viton® seals or cast iron with Buna seals, users can choose the material that suits their specific requirements.

1
year limited
warranty
Categories: Brand:
1
year limited
warranty

Have a question? Give us a call!

877-710-7867
C5 Straight Centrifugal Pump

Our C5 Straight Centrifugal Pump is constructed with precision using investment cast 316 stainless steel with Viton® seals or cast iron with Buna seals, users can choose the material that suits their specific requirements.

Product Details

Our C5 Straight Centrifugal Pump is a versatile solution available in two robust constructions to meet varied needs:

Investment Cast 316 Stainless Steel Construction:

  • Crafted with investment cast 316 stainless steel, providing corrosion resistance and durability.
  • Equipped with Viton® seals for reliable sealing and chemical resistance.
  • Stainless steel impellers with solids-handling capacity ranging from ⅛” to 3/16″ (3 mm – 5 mm).
  • High flow and high head designs to cater to diverse pumping requirements.

Cast Iron Construction:

  • Features cast iron construction with Buna seals, ensuring durability and efficient performance.
  • Stainless steel impellers with the same solids-handling capacity for reliable pumping in demanding environments.
  • High flow and high head designs to accommodate various applications.
Features and Benefits
  • Maximum temperature: SS – Viton®: 200° F (93° C) CI – Buna N: 180° F (82° C)
  • Max head: 194′ (59 m) (100 PSI)
  • Max flow: 425 GPM (1,609 LPM)
  • Max working pressure: 150 PSI
  • Front drain plugs located 90° apart
  • Note: Pumps are not self-priming and require flooded suction.
  • 1 year limited warranty
Product Specifications

Motor:

3 – 15 HP

Hertz:

60 Hz

RPM:

3450 RPM

Phase:

3 Ph

Flow:

425 GPM (1,609 LPM)

Impeller Type:

Stainless steel
