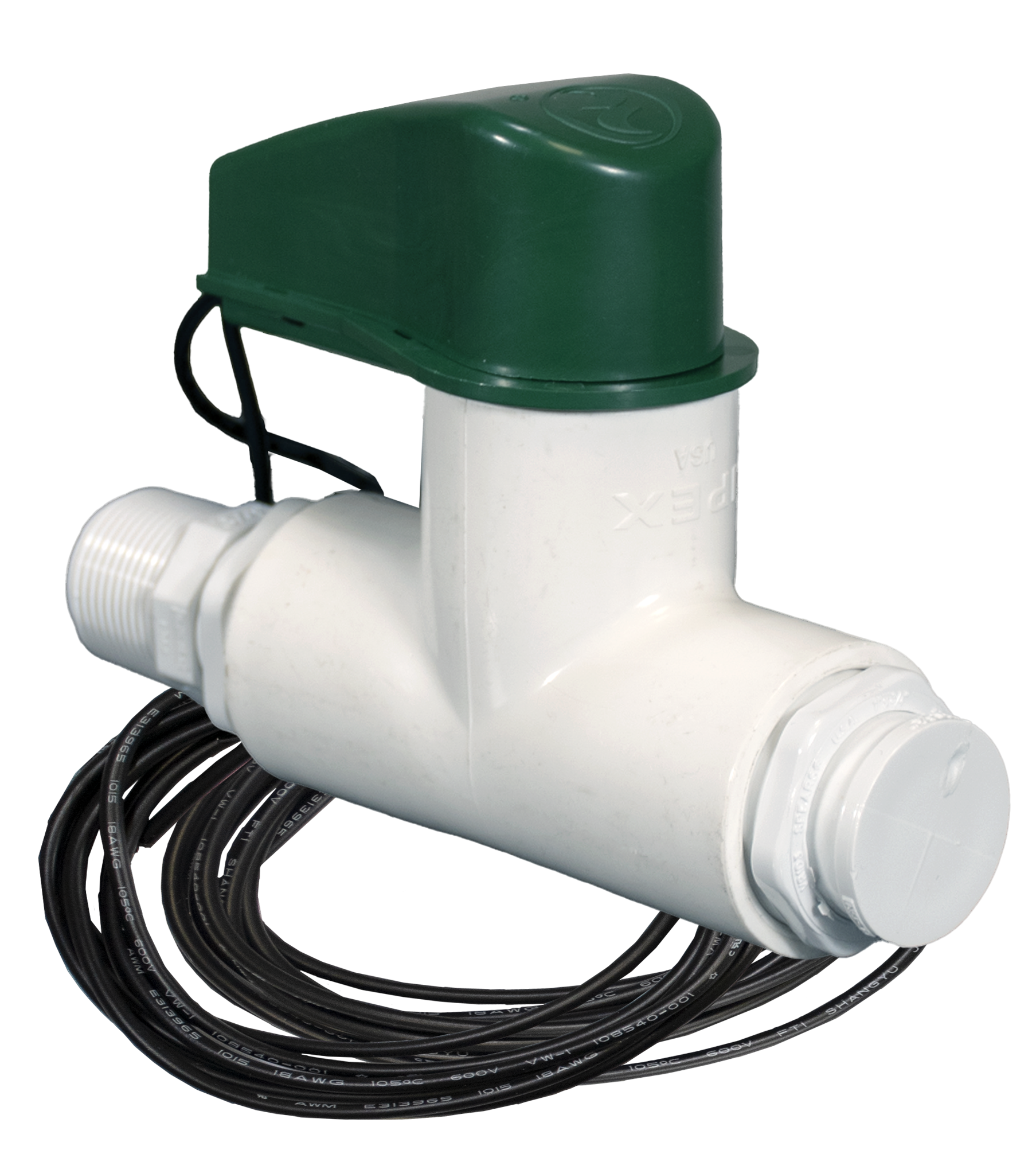

In-Line Condensate Pump Switch

  • Identifies clogs or blockages in the condensate drain line
  • Deactivate equipment or notify users of a possible overflow situation
  • Installed in-line on A/C equipment directly at the drain pan outlet or directly at the secondary drain pan outlet
  • View More Details

The In-Line Condensate Pump Switch identifies clogs or blockages in the condensate drain line. It can deactivate the equipment or notify users of a possible overflow situation.

Product SKU:

10-4754

UPC:

053514469573
Categories:

Have a question? Give us a call!

877-710-7867
In-Line Condensate Pump Switch

The In-Line Condensate Pump Switch identifies clogs or blockages in the condensate drain line. It can deactivate the equipment or notify users of a possible overflow situation.

Product Details

The In-Line condensate pump switch is used to identify clogs or blockages in the condensate drain line. The switch can deactivate equipment or notify users of a possible overflow situation. The switch is installed in-line on A/C equipment directly at the drain pan outlet or directly at the secondary drain pan outlet.

Features and Benefits
  • Installs horizontally or vertically for confined spaces
  • Operates as NO and/or NC operation (additional lead wire required if both circuits used)
  • Reliable mechanical switch and polymer float
  • Easy access to drain line for cleaning and inspection (by lifting off switch assembly)
  • Shuts off equipment when clog or blockage backs up condensate water in drain line
  • Includes two 18 gauge, 6' (72") leads
  • Includes schedule 40 PVC 3/4" 90° housing, 3/4" MNPT x 3/4" male slip adapter (to fit standard 3/4" equipment pan outlets)
  • Suitable for 24 VAC Class 2 (thermostat) circuit
  • 5 amp switching capacity
  • Adheres to relevant building regulations
Product Specifications

Installation:

Horizontal or vertical installation

Amps:

5

Voltage:

24
