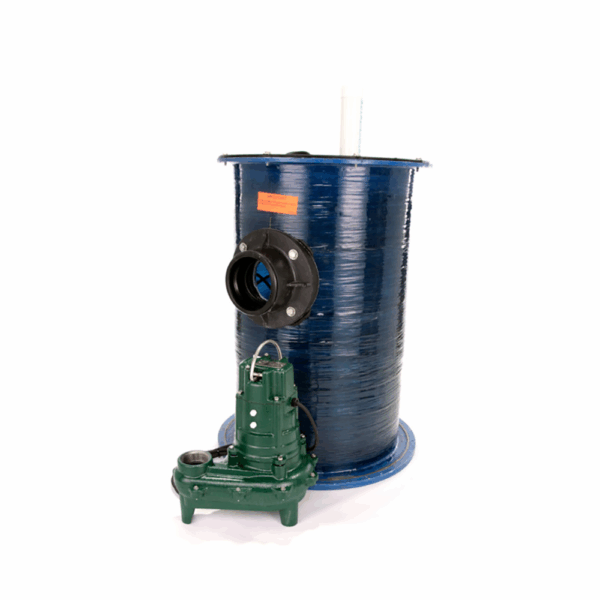

912 Simplex 18″ x 30″ Fiberglass Sewage Package with BN267

  • Preassembled sewage ejector package for a job ready, fast, and easy install
  • Package is pre-plumbed with our Model 267 a fully automatic 1/2 HP sewage pump with a piggyback float switch
  • 18” x 30” basin with a 4” inlet, 2" vent, and 2" discharge
  • View More Details

The Model 912 with the Model BN267 is a higher head and higher flow preassembled sewage ejector system ideal for those looking to install a pre-plumbed, job ready system.  This package ships complete with the Model BN267, a 1/2 HP, 115 V sewage pump.  Designed for burial flush-to-grade, the access cover is the only part that is visible after installation.

Product SKU:

912-0020

UPC:

053514026035
3
year limited
warranty
Categories: Brand:
3
year limited
warranty

Have a question? Give us a call!

877-710-7867
912 Simplex 18" x 30" Fiberglass Sewage Package with BN267
912 Simplex 18" x 30" Fiberglass Sewage Package with BN267
912 Simplex 18" x 30" Fiberglass Sewage Package with BN267
912 Simplex 18" x 30" Fiberglass Sewage Package with BN267

The Model 912 with the Model BN267 is a higher head and higher flow preassembled sewage ejector system ideal for those looking to install a pre-plumbed, job ready system.  This package ships complete with the Model BN267, a 1/2 HP, 115 V sewage pump.  Designed for burial flush-to-grade, the access cover is the only part that is visible after installation.

Product Details

Our Model 912 is a preassembled sewage ejector package that comes with all of the key components required for installation.  It is a higher head and higher flow package when compared to the 912-0007 with the Model 264.  It is ideal for those looking to install a job ready sewage ejector system.  Purchasing a job ready package reduces installation errors while minimizing cost.

The Model 912 sewage ejector package is designed for burial flush-to-grade.  The access cover is the only part that is visible after installation.

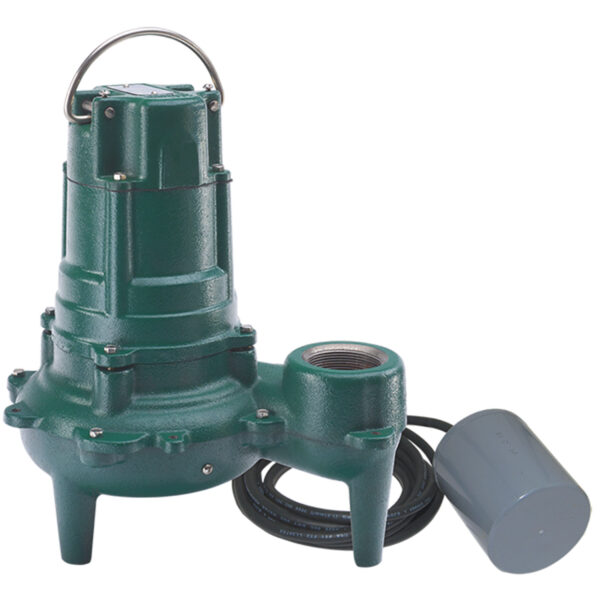

The package comes preassembled in an 18″ x 30″ fiberglass basin.  It includes our Model BN267 automatic sewage pump.  The Model 267 is a 1/2 HP pump.  The vortex impeller design of the Model 267 allows the pump to pass 2″ spherical solids limiting the potential for clogging and unwanted downtime.

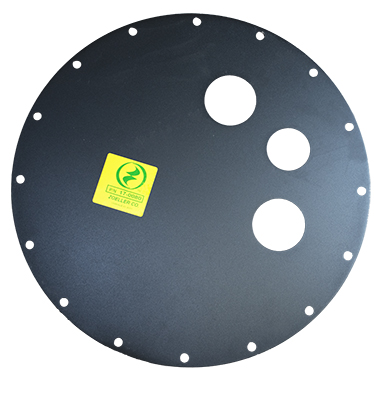

The basin comes complete with a 2″ PVC discharge pipe that includes a predrilled 3/16″ weep hole to prevent the pump from becoming airlocked.   The basin’s cover includes a cord seal for the pump’s electrical cord along with a predrilled 2″ vent hole.  The cover is sealed in place prior to shipment.  The pre-plumbed 4″ inlet hub makes for a quick connection to the main sewage line.

Each basin is filled with environmentally friendly packing peanuts prior to shipment to ensure things remain in place during transit.  The packing material is water soluble, so it will disappear on the first use.

Job ready, fast, and easy installation!

Features and Benefits
  • As with all Zoeller pumps, the Model 267 is 100% Factory Tested
  • 10' Stack Test to L.A. Code
  • The Model 266 sewage pump is built with an engineered plastic base and vortex impeller capable of handling 2" spherical solids reducing the chance of clogs and downtime
  • The pump's 115 V electrical cord seal is sealed in the cover
  • The single piggyback pump switch is installed 180° from the 4" inlet to prevent the float from being affected by the inflow of raw sewage
  • Discharge pipe is plumbed with a pre-drilled 3/16” weep hole to prevent the pump from becoming air locked
  • The cover comes sealed and bolted down so the system is water and gas tight eliminating the escape of any odor
  • 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications

Shipping Weight:

79 kg

Shipping Dimensions:

Height 36 cm   x   Width 22 cm   x   Length 22 cm.

Pump Model in Basin:

BN267

Vent Size:

2"

Basin Size:

18" x 30"

Basin Type:

Fiberglass-10' stack, LA code

Discharge:

2" NPT, Top

Solids Handling:

2" (50 mm) spherical solids

Customers Also Buy

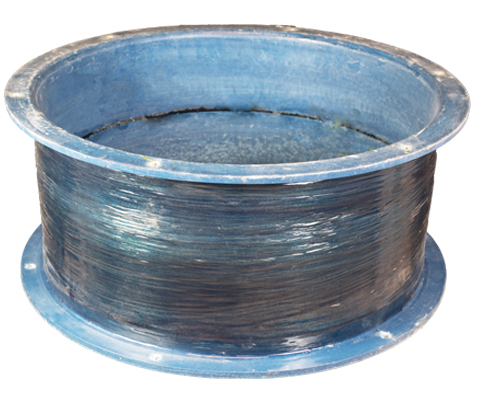

Fiberglass Extension for 18×30 Dia Basin (6″ Tall) image
