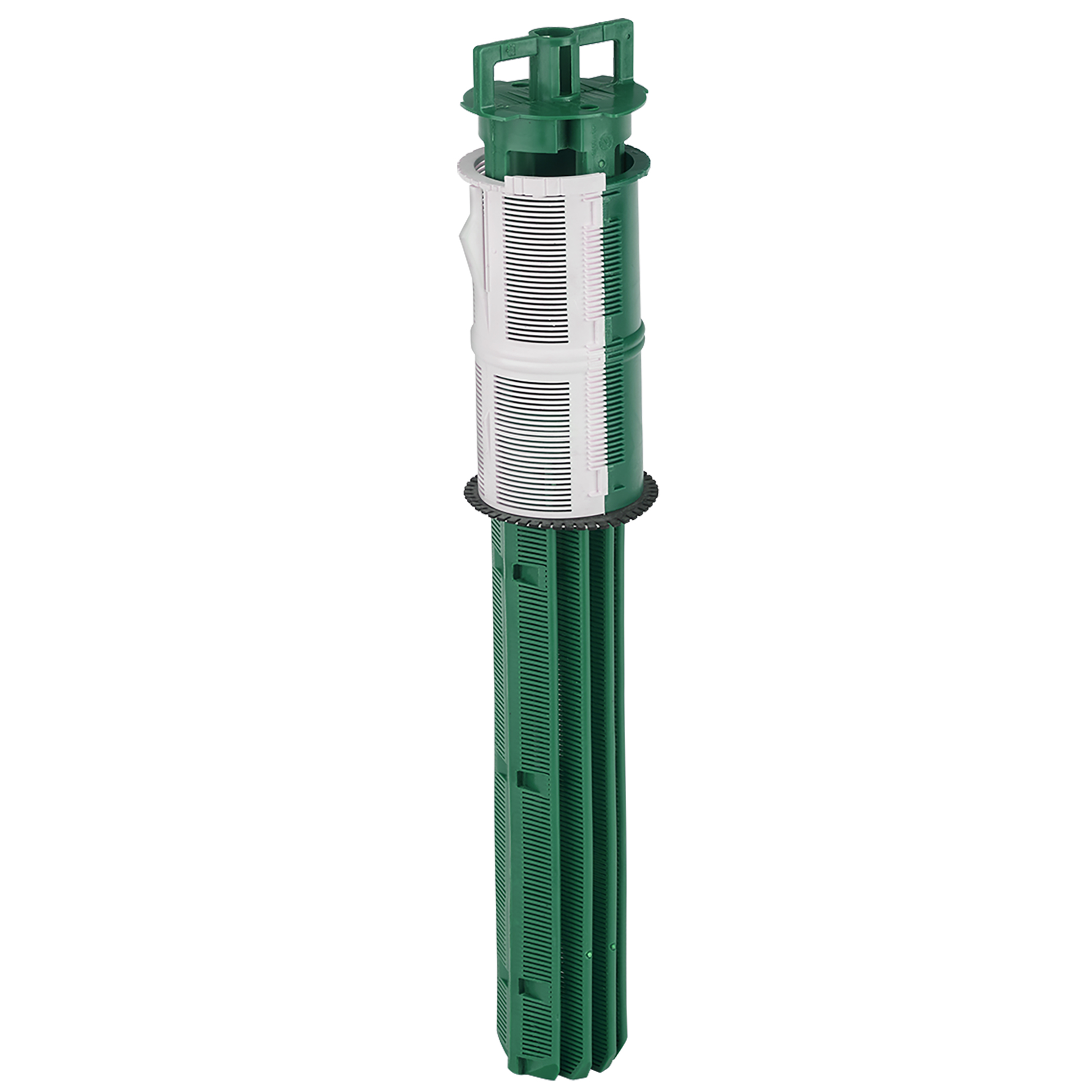

WW1 Residential Effluent Filter – 10 pack

Product Details

Our WW1 Effluent Filter helps prolong the life of any onsite septic system by filtering and retaining solids in the primary tank.  Passive filtration of solids in a primary septic tank is an economic means of preventing harm to downstream components.  The filter helps protect distribution boxes and drain fields that often follow the septic tank.  Repairs of either can be quite costly, especially on smaller building lots.

Used in residential applications where the maximum flow is less than 1,500 gpd (5.7 m³/day), the WW1 effluent filter includes a patented bypass protection sleeve to keep solids in the septic tank, even during cleaning.  This feature is often referred to as a filter-within-a-filter.  The deep pleated filter design offers highly effective filtering to 1/16″ of an inch and keeps solids in the tank. The filter is available with a 4” sanitary tee for easy installation in new or existing septic tanks. The WW1 Effluent Filter is certified to NSF/ANSI Standard 46.

Peace of mind right-out-of-the box. This product is sold in a 10 pack, for a single filter see 170-0078.

Features and Benefits

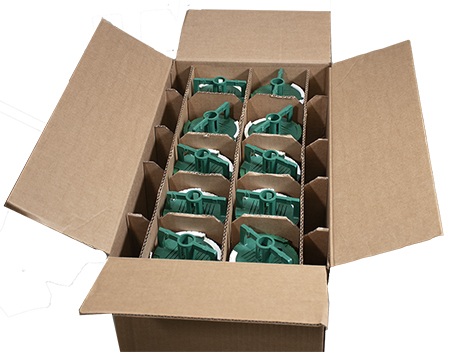

• Ships in a pack of 10
• Fits 4” SCH 40 or DWV Tees
• Integral bypass protection screen
• Covered by US Patent Numbers 6,136,190; 6,331,247; 6,495,040
• For use in single family homes
• Available with sanitary tee for use in jurisdictions that require a specific liquid penetration such as 25% – 45% into the liquid depth or 9″ off the tank bottom
• All materials are non-corrodible in the septic tank environment, sleeve is PVC, primary filter is polypropylene, and filter connection element is neoprene
• The WW1 filter is certified to NSF/ANSI Standard 46
• Limited lifetime warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
