Oil Smart® Pump Alarm
- NEMA 4X alarm panel enclosure
- Audible light alarms and dry contacts
- Sensors differentiates between oil and water and alerts maintenance personnel of high-water or oil-detected conditions
- View More Details
The Oil Smart® Pump Alarm will notify the users in a high liquid alarm situation. The 2 sensor switch can distinguish between high water or high oil to activate the appropriate visual alarm on the face of the NEMA 4X panel as well as trigger the visual red beacon light and audible alarm.
Product SKU:
10-1526
UPC:
053514153526
1
year limited
warranty
1
year limited
warranty
;)
Have a question? Give us a call!
877-710-7867
The Oil Smart® Pump Alarm will notify the users in a high liquid alarm situation. The 2 sensor switch can distinguish between high water or high oil to activate the appropriate visual alarm on the face of the NEMA 4X panel as well as trigger the visual red beacon light and audible alarm.
Product Details

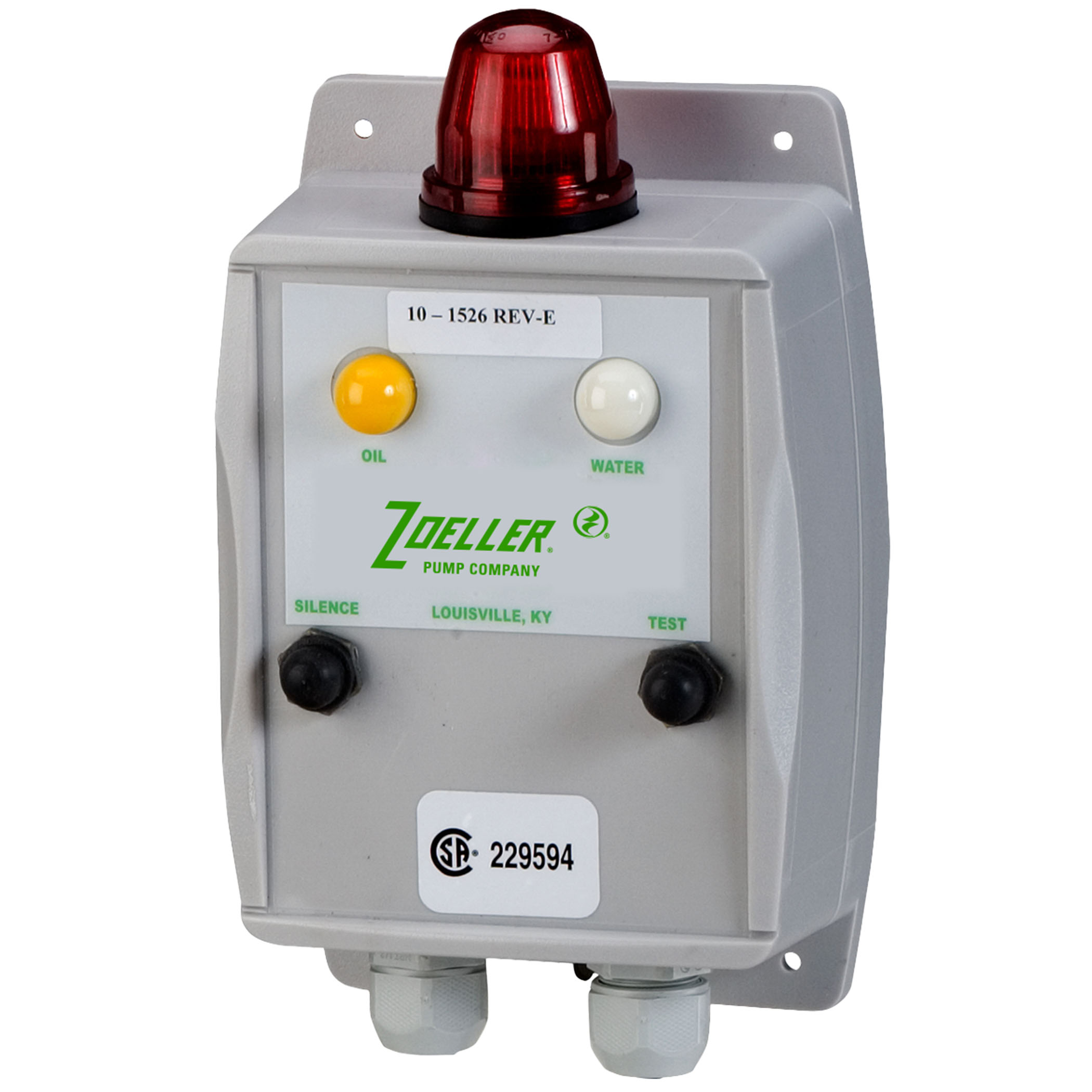

The Oil Smart® Pump Alarm is a NEMA 4X enclosure that will sound an audible alarm if the liquid level becomes too high. Simultaneously, a red beacon will illuminate as an early warning of a problem and 1 of 2 other indicator lights will illuminate. On the face of the alarm panel either a yellow light will illuminate for high oil or a white light for high water. There are dry contacts for each of these lights. The Oil Smart Alarm includes a 20′ power cord to be plugged into an 115 V outlet.
Features and Benefits
- Alarm test and silence switches
- ASME A17.1 compliant
- Alarm panel cCSAus listed
- 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications
Shipping Weight:
4.5 kg
Shipping Dimensions:
Height 4 1/2 cm x Width 14 cm x Length 6 cm.
Enclosure:
NEMA 4X
Voltage:
115 V
Phase:
1 Ph
Cord Length:
20' (6 m)
