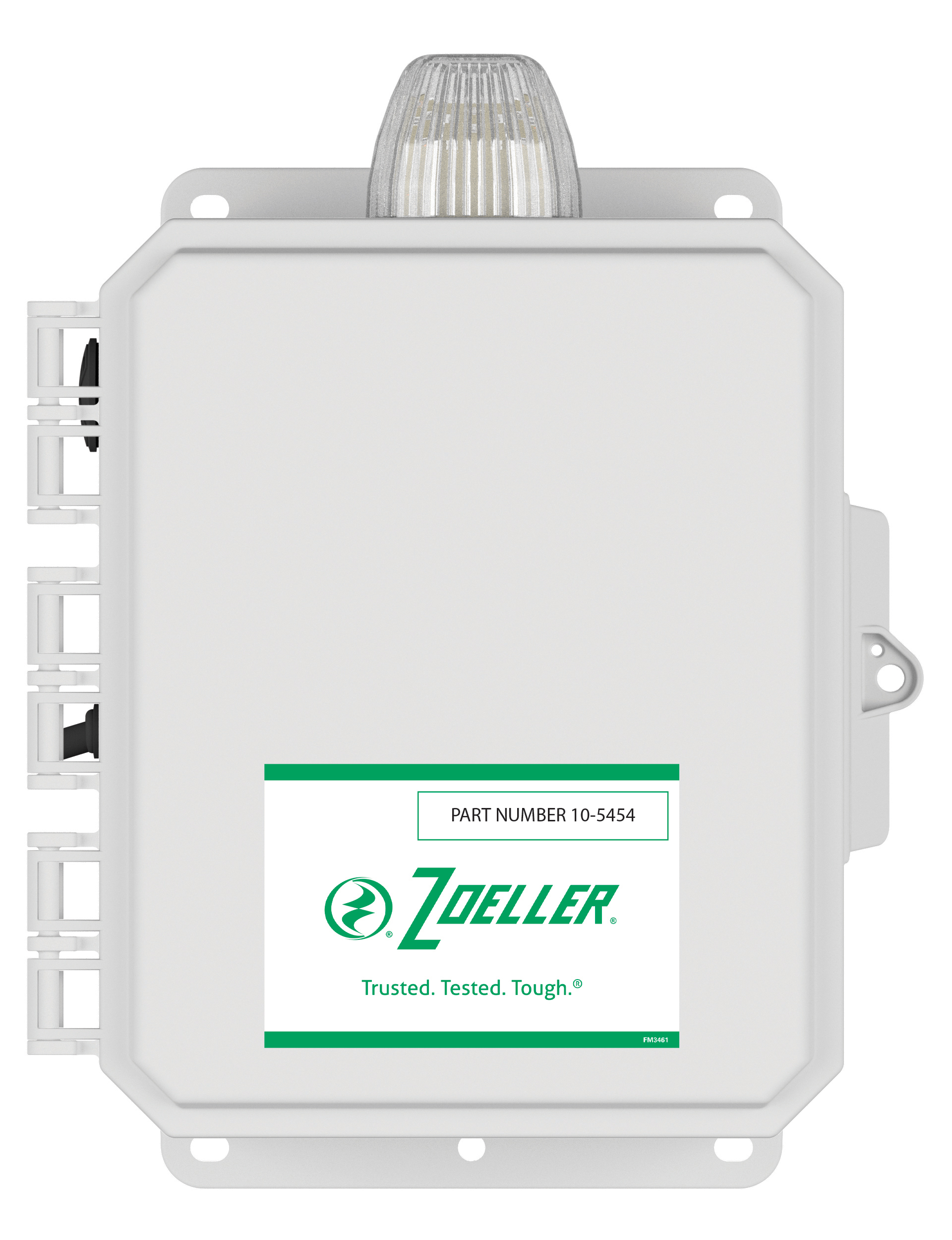

Simplex Time Dose Control Panel, 0-15 Amps
- Simplex 1 Ph control panel, 115/208/240 V
- A NEMA 4X enclosure able to withstand a variety of weather conditions
- Offering the most common options as standard features
- View More Details
The simplex time dose panel is a single phase 115/208/240V, simplex panel, with LEDs, buzzer, globe, dry contacts, 7-15 amps and timer functions. It has a NEMA 4X enclosure, opaque door, and includes a cycle counter and elapsed time meter.
Product SKU:
10-5454
UPC:
053514512262
2
year limited
warranty
2
year limited
warranty
Have a question? Give us a call!
877-710-7867
The simplex time dose panel is a single phase 115/208/240V, simplex panel, with LEDs, buzzer, globe, dry contacts, 7-15 amps and timer functions. It has a NEMA 4X enclosure, opaque door, and includes a cycle counter and elapsed time meter.
Product Details

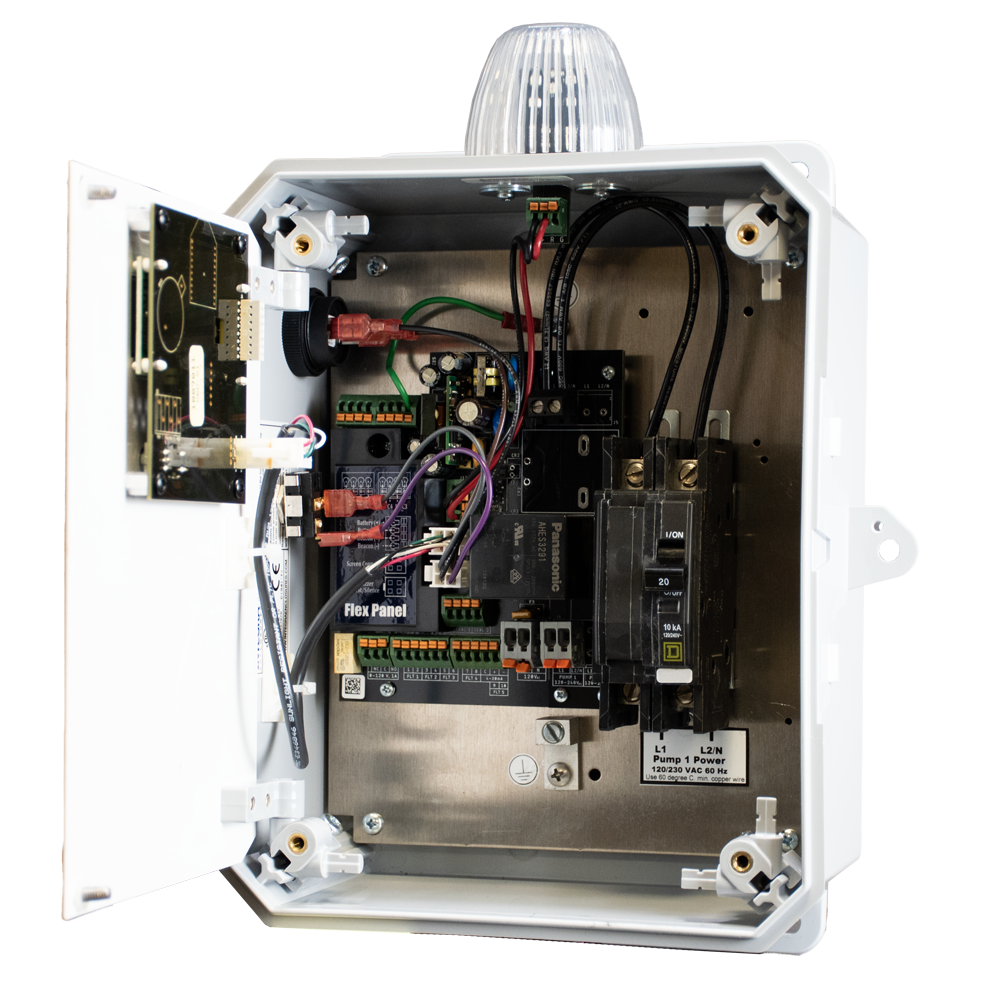

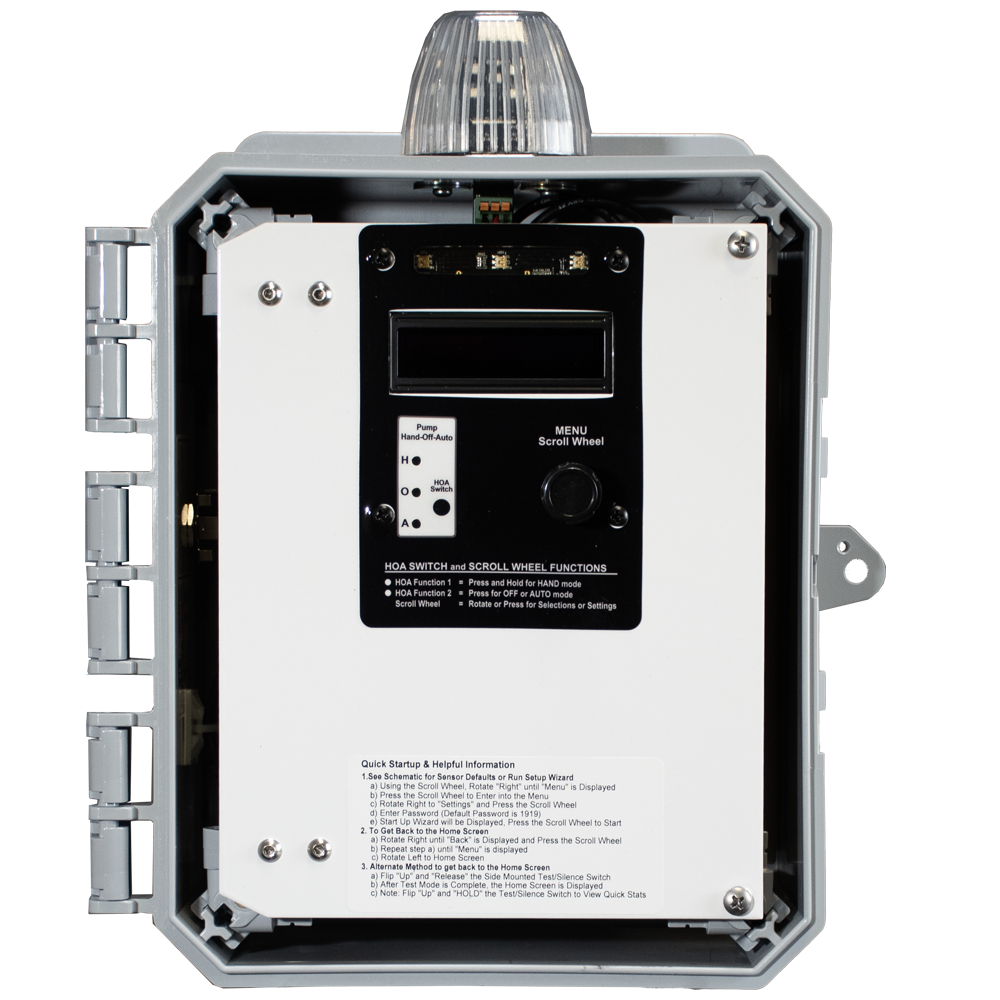

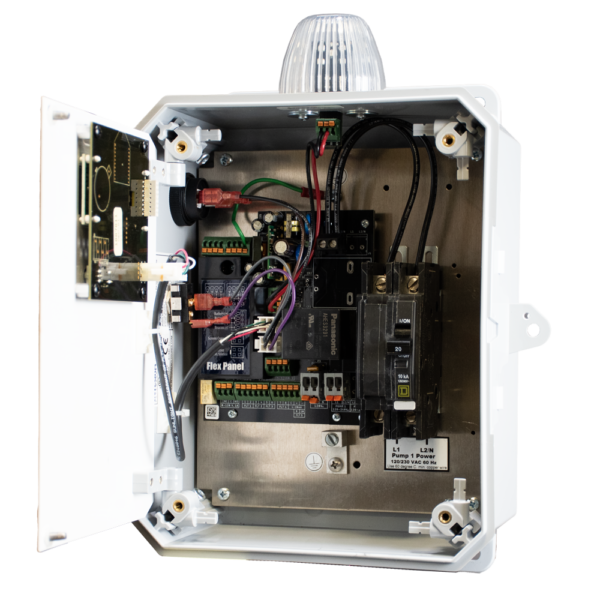

Our Simplex time dose panel is a new addition to our control panel line. It is single phase 115/208/240V, simplex, with LEDs, buzzer, globe, dry contacts, 0-15 amps and timer functions. The enclosure is NEMA 4X rated, opaque door, and includes a cycle counter and elapsed time meter. It can be configured to control and monitor one pump and five sensor inputs, three or four float control with an auxiliary alarm input on input 5. The panel can be configured for demand dose or time dose control. An auxiliary dry contact is also included for interfacing to remote alarms. Floats are purchased separately.
Features and Benefits
- LED indicator lights: green (normal), red (alarms), blue (pump run), and red/yellow (error).
- Ample room within the panel around the terminal block for field wiring
- Automatic resettable alarm and control fuses
- Peak timer enable/disable. Allows for a second set of peak dosing times to adapt to peak flows
- Statistic tracking. Pump elapsed time, min/max/avg pump run times, pump cycle counter, total gallons pumped, high level stats
- 2-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications
Shipping Weight:
10 kg
Shipping Dimensions:
Height 4 cm x Width 8 cm x Length 10 cm.
Panel Type:
Simplex
Enclosure:
NEMA 4X
Voltage:
120, 208, 240
Phase:
1 Ph
Full Load Amp:
0 to 15
