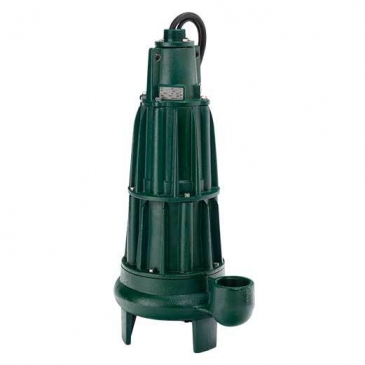

X61 HD Series

  • Cast iron construction with epoxy powder coating
  • Balanced concentric pump housing and impeller
  • Ductile iron impeller – two-blade, semi-open with top pump-out vanes
  • Oil-filled motor housing
  • Thermal sensor
  • Finned cast iron housing for faster heat dissipation
  • View More Details

Heavy-duty pumps for Class I, Division 1, Group C & D locations and Class Zone 1, Groups IIA & IIB Construction

Category:

Have a question? Give us a call!

877-710-7867
X61 HD Series
X61 HD Series

Heavy-duty pumps for Class I, Division 1, Group C & D locations and Class Zone 1, Groups IIA & IIB Construction

Product Details

APPLICATIONS

  • Pumping stations
  • Storm water removal
  • Wastewater transfer or removal
  • Industrial wastewater
  • Food industry byproduct (horizontal discharge units)
  • Animal processing removal (horizontal discharge units)

PUMP:

  • Solids: 2-1/2” (63 mm) spherical capability

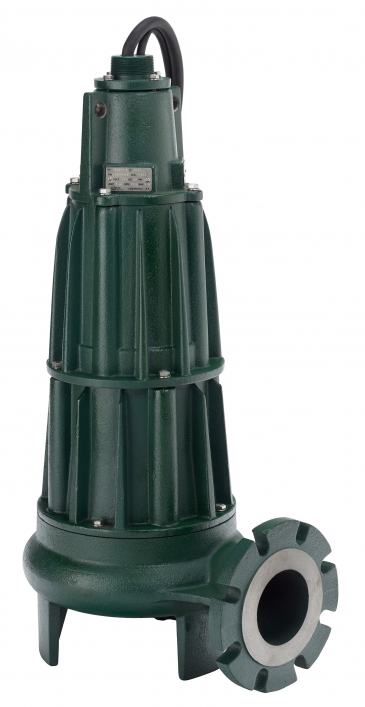

  • Discharge: 3” NPT vertical or 3″ or 4″ flanged horizontal
  • Seals – dual mechanical carbon/stationary ceramic/rotary, Buna-N elastomers
  • Construction – cast iron ASTM A-48, Class 30, 30,000# tensile strength, protected with a corrosion-resistant, baked-on epoxy powder coating
  • Balanced concentric pump housing and impeller
  • Attaching hardware – 304 stainless steel
  • O ring seals – Buna-N
  • Ductile iron impeller – two-blade, semi-open with top pump-out vanes
  • Optional:
    • Trimmed impeller
    • Vortex impeller
    • Silicon carbide seal(s)
    • 50’ (15 m) power and sensor cables
    • 3450 RPM high head unit (3″ discharge units only)
    • Non-sparking rail systems
    • 3″ (76 mm) solids capacity (4″ discharge units only)

MOTOR:

  • cCSAus rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
  • Tested to FM standards 3600 and 3615 by CSA
  • Stator – Class F insulation and lead wires, Nema B design
  • Oil-filled motor housing
  • Thermal sensor
  • Finned cast iron housing for faster heat dissipation
  • Ball bearings – dual high carbon chromium steel
  • Power and sensor cable length – 25’ (8 m)

Note: Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.

Features and Benefits
  • 2-1/2” (63 mm) spherical capability solids handling
  • 3” NPT vertical or 3″ or 4″ flanged horizontal discharge
  • dual mechanical carbon/stationary ceramic/rotary seals
  • Attaching hardware – 304 stainless steel
  • O ring seals – Buna-N
  • cCSAus rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
  • Motor tested to FM standards 3600 and 3615 by CSA
  • Ball bearings – dual high carbon chromium steel
  • 25' cord
