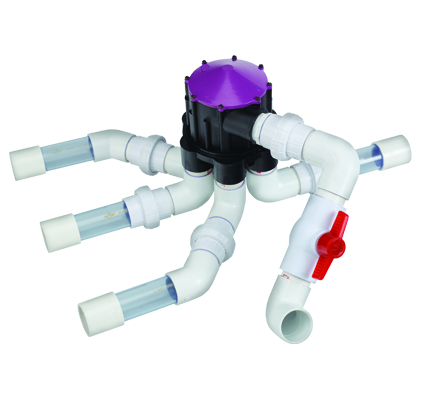

Four Outlet Multizone Valve Assembly

  • Pre-assembled unit with unions and shut-off valve
  • Designed to splitting flows of effluent into 4 zones
  • Easy to install and maintain
  • View More Details

Dosing four zones for lateral fields, drip irrigation systems or treatment systemscan easily be accomplished by using a four zone multizone assembly. Multizone assemblies come preassembled with multizone valve, unions, piping, and shut-off valves to make on the job installation quicker and easier.

Product SKU:

5053-0003

UPC:

053514157166
1
year limited
warranty
Categories:
1
year limited
warranty

Have a question? Give us a call!

877-710-7867
5053-0003 Multizone assembly

Dosing four zones for lateral fields, drip irrigation systems or treatment systemscan easily be accomplished by using a four zone multizone assembly. Multizone assemblies come preassembled with multizone valve, unions, piping, and shut-off valves to make on the job installation quicker and easier.

Product Details

Automatic Multizone Valves offer an easy, reliable, and non-electrical way of splitting effluent flows to four drain fields, drip irrigation zones or treatment systems. Models are available which can split flows to 2, 3, 4, 5, or 6 zones powered only by an effluent pump. Patented for its ability to dose multiple zones with only one moving part, the two zone multizone valve offers exceptional durability in effluent water conditions. The 6000 series multizone valve features a heavy-duty, non-corrodible, die-cast metal housing.

Multizone assemblies come preassembled with unions, piping, and shut-off valves to make on the job installation quicker and easier.

Features and Benefits
  • Automatic Multizone Valve must be placed at system high point for proper operation.
  • Minimum flow of 15 gpm for the 6000 Series must be maintained in order for the valve to index properly
  • Four Zone operation
  • 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications

Shipping Weight:

12 kg

Shipping Dimensions:

Height 30 cm   x   Width 20 cm   x   Length 20 cm.

Operation:

4 zone

Material:

Die Cast Metal Housing High strength non-corrodible ABS Polymer Outlets

Pressure Rating:

2-1/2 – 150 PSI

Inlet Piping:

Threaded 1-1/2" NPT Connection

Outlet Piping:

Slip and glue connections to 1-1/2" PVC Pipe, Preassembled
