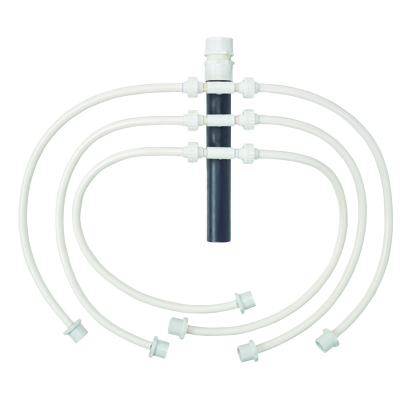

Six Lateral Spider Valve® (valve araignée latérale)

  • Serves 6 lateral lines in an septic system application
  • A manifold that is configurable to your specific site conditions
  • For sizing assistance, consult Product Support at 1-877-244-9340 or download the Spider Valve® Orifice Sizing Tool
  • View More Details

The Spider Valve® assembly is designed to equally split septic effluent under pump pressure into 6 lateral lines.  It will proportionally split flow to lateral lines of unequal length when a traditional distribution box cannot.  It is ideal for drain field repairs or small building lots.  The six lateral Spider Valve assembly includes 5/32” predrilled washers and a union for each washer.  It should be installed within a 24-inch diameter riser for access to perform maintenance .

Product SKU:

5051-0034

UPC:

053514248994
1
year limited
warranty
Categories:
Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
1
year limited
warranty

Have a question? Give us a call!

877-710-7867
5051 Spider Valve

The Spider Valve® assembly is designed to equally split septic effluent under pump pressure into 6 lateral lines.  It will proportionally split flow to lateral lines of unequal length when a traditional distribution box cannot.  It is ideal for drain field repairs or small building lots.  The six lateral Spider Valve assembly includes 5/32” predrilled washers and a union for each washer.  It should be installed within a 24-inch diameter riser for access to perform maintenance .

Product Details

Our Spider Valve® assembly is designed to equally split septic effluent under pump pressure into six lateral lines.  It is ideal for septic system applications with six lateral lines of unequal length.  This often occurs with a home built on a small lot or when a replacement drain field is required.  In such instances, a traditional distribution box is unable to split flow proportionally to lateral lines of unequal length.  If that is the case, the Spider Valve is the answer.

Six lateral lines receive flow from the spider valve and then flow by gravity within the lines. Orifices within the manifold can be drilled to allow equal flow to each line.  The six lateral Spider Valve assembly includes 5/32” predrilled washers and a union for each washer. Unions allow washers to be removed for cleaning and maintenance.  A spider valve sizing program is available to calculate orifice size so that equal flow is obtained per line.

Features and Benefits
  • Installs within a 24” diameter access riser buried flush-to-grade
  • 3 feet of 1/2” diameter PVC flexible pipe on each discharge for ease of assembly
  • 2” diameter SCH 80 PVC manifold with cleanout for equal pressurization and easy maintenance
  • Pressurized splitting to a gravity disposal field
  • 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications

Shipping Weight:

5.5 kg

Shipping Dimensions:

Height 24 cm   x   Width 7 cm   x   Length 24 cm.
