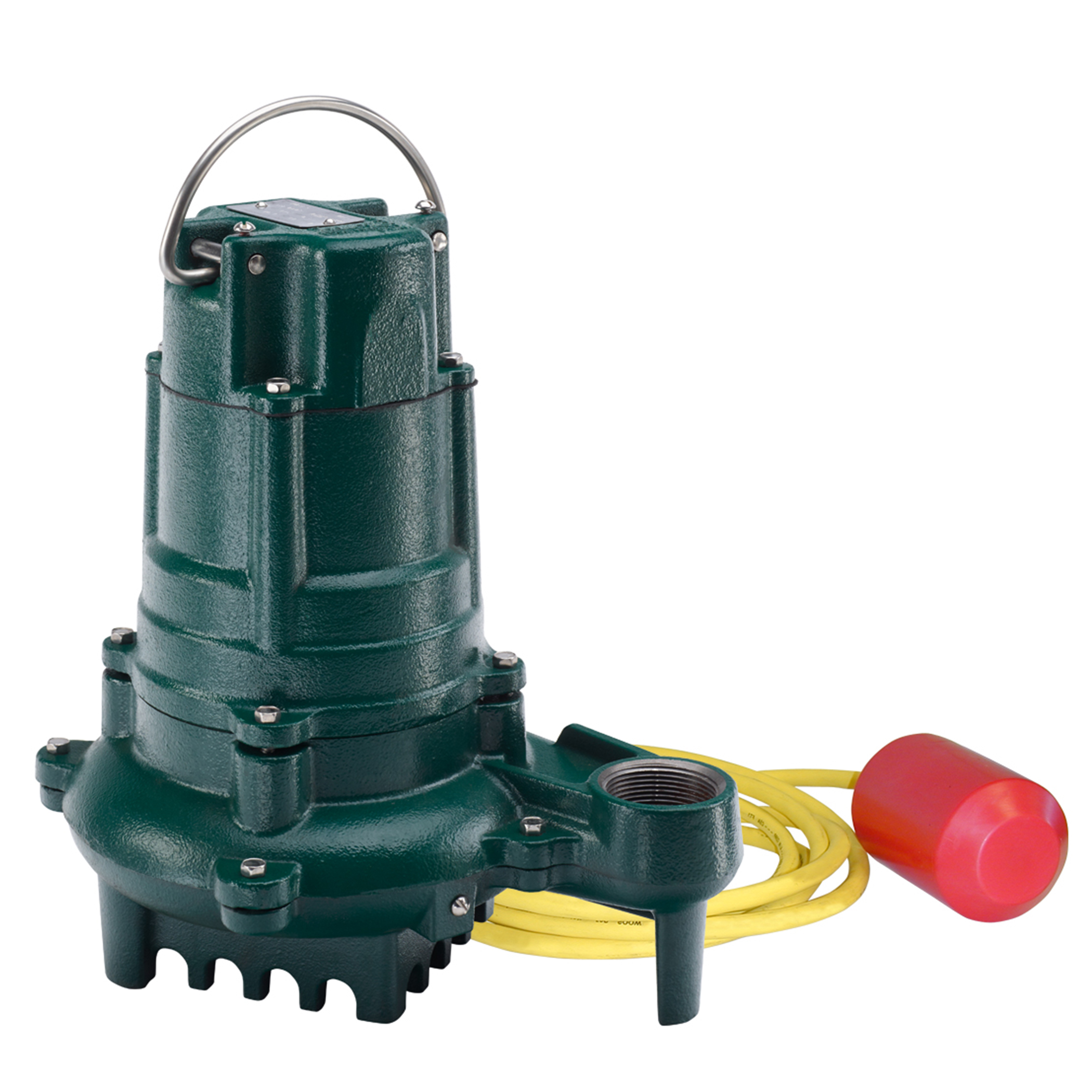

BN2137 Pompe intermittente à haute température avec cordon de 15′ et interrupteur de 10′

  • 115 V nonautomatic effluent pump with a piggyback variable level float switch for use in high temperature applications
  • Moteur de 1/2 CV rempli d'huile et corps de moteur en fonte pour une dissipation optimale de la chaleur
  • 100% Testé en usine
  • Voir plus de détails

The 1/2 HP Model BN2137 nonautomatic High Temperature Pump with a variable level float switch is designed to work in boiler blow down, hot water transfer, plant wash down, transformer vaults, and industrial steam cleaning systems. It is constructed of cast iron with a durable powder-coated epoxy finish to reduce corrosion, making it ideal for most applications requiring a pump rated for temperatures up to 200 °F (93 °C). The Model BN2137 works well in light commercial applications and is a desirable choice for longevity.  Backed by a one-year warranty, every pump is submerged and water tested to provide years of trouble-free performance.

Référence produit :

2137-0005

Code produit universel :

053514125103
1
année limitée
garantie
Catégories :
1
année limitée
garantie

Une question ? Appelez-nous !

877-710-7867
BN2137 Intermittent High Temperature Pump with 15' Cord and 10' Switch

The 1/2 HP Model BN2137 nonautomatic High Temperature Pump with a variable level float switch is designed to work in boiler blow down, hot water transfer, plant wash down, transformer vaults, and industrial steam cleaning systems. It is constructed of cast iron with a durable powder-coated epoxy finish to reduce corrosion, making it ideal for most applications requiring a pump rated for temperatures up to 200 °F (93 °C). The Model BN2137 works well in light commercial applications and is a desirable choice for longevity.  Backed by a one-year warranty, every pump is submerged and water tested to provide years of trouble-free performance.

Détails du produit

Our Model BN2137 Sump and Effluent Pump is designed to work in boiler blow down, hot water transfer, plant wash down, transformer vaults, and industrial steam cleaning applications where a pump rated for high temperature is required. The professional-grade, 1/2 HP Model 2137 is known for its dependability in intermittent direct contact applications of up to 200 °F (93 °C).  The BN2137 is a nonautomatic pump equipped with a single piggyback float switch.  The piggyback switch that is included is also designed for high temperature applications. The piggyback float switch allows you to set the on and off point of the pump in the field.  This is ideal in an application with a deep sump pit or pump tank.

The Model 2137’s switch case, motor housing, and pump housing are each constructed of cast iron. The cast iron vortex impeller has a smooth surface allowing water and solids to pass freely through the pump.  The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel.  This attention to detail ensures that the Model 2137 is able to withstand the most demanding applications.

Chaque pompe est immergée dans l'eau et testée selon sa courbe de performance publiée, garantissant ainsi qu'elle répond à vos attentes et vous offre une tranquillité d'esprit dès la sortie de la boîte.

Caractéristiques et avantages
  • Oil filled for optimal heat dissipation: This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications.
  • Cast iron vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
  • La finition époxy thermolaquée offre une résistance à la corrosion et prolonge la durée de vie de la pompe dans des environnements difficiles.
  • Stainless steel screws, handle and hardware to prevent rust and corrosion over the life of the pump
  • 100% Testé en usine - chaque pompe est immergée dans l'eau et testée en usine pour s'assurer qu'elle fonctionne comme prévu à la réception
  • Livré avec une garantie limitée d'un an, vous offrant une protection sur votre investissement et la tranquillité d'esprit que vous attendez d'un produit de qualité.
Spécifications du produit

Expédition Poids:

46 kilogramme

Expédition Dimensions:

Height 13 3/4 cm   x   Width 11 cm   x   Length 11 cm.

Chevaux-vapeur

1/2 CV

Tension

115 V

Phase :

1 Ph

Amplis :

10.7

Hertz :

60 Hz

RPM :

1725

Décharge :

1-1/2" NPT

Manutention des solides :

Solides sphériques de 1/2" (12 mm)

Points Mar/Arr

Sonde de niveau de liquide variable, réglée par le client

Type de roue:

Vortex

Longueur du cordon :

10' (3.1 m) piggyback switch, 15' (5 m)
