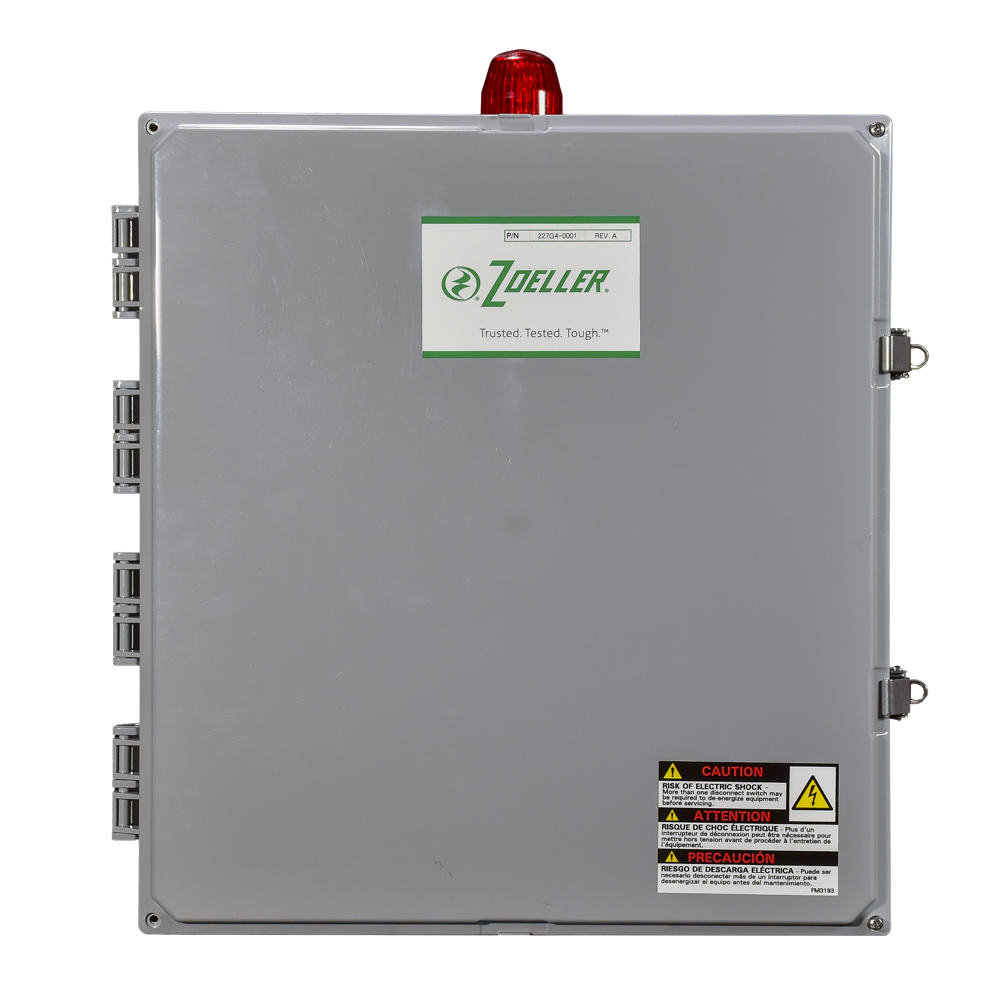

Duplex Pivot Pro Plus Control Panel, 9-14 Amps

Product Details

Our Duplex Pivot Pro+ Control Panel for 200/230/460 V, 3 Ph lift station pump applications ranging from 9-14 Amps.  Now you can get Zoeller quality in the whole system by pairing our pumps with our highly featured Pivot Pro+ Control Panel. The Pivot Pro+ offers a lockable LCD screen for easy onsite access and control. This panel includes an auto reversing feature.

This panel is designed to operate two pumps, so it is ideal for commercial applications where pump redundancy is important. The panel enclosure is NEMA 4X so it is able to be used outdoors and will withstand a variety of weather conditions.

For example, this panel detects and prevents problems to a far greater degree than regular panels.  Alarms are built-in for bad components.  Additionally, the use of microchip technology and logic allows for a long list of standard features.

The Pivot Pro+ Control Panel is capable of detecting, reacting, and notifying of problems with float switches. The benefit is that, unlike other panels, a pump can still turn on even when a float is bad. The panel can also detect bad components like contactors, overloads, seal fail circuits, etc.  This means a warning is provided before the failure results in property damage.

The Pivot Pro+ Panel also has a selection of Modes including Auto, Hand, Service Off, and Permanent Off.  The Service Off Mode allows you to prevent a pump from running during service.  After 4 hours in Service Off, the audible and visual alarms will activate.  This notification reminds the user to return the panel to Auto Mode.  This selection of mode options is ideal for anyone servicing a lift station.

Additionally, the Pivot Pro+ Control Panel has a simple interface, can be modified for most applications, and with so many features in a single panel, stocking has never been easier.

Features and Benefits

• RED/AMBER/GREEN LEDs for float switch indicators, Pump Run, High Water, System Ready, and HOA functions
• Reversing Features: Panels with a “3” or “4” as the second digit in the part number are reversing panels
• Ample room within the panel around the terminal block for field wiring
• TEST toggle will check all LEDs, globe, and horn
• Elapsed time and cycle counts via USB port & LCD
• Connect your Pivot Pro+ to the Z Control Cloud using Zoeller’s Wi-Fi Gateway, item number 90002-0001
• Lockable LCD menu allows for easy access to status, counters, and settings
• Adjustable settings
• Seal fail and thermal trip indicator/alarm for each pump (feature requires moisture sensor in pump)
• Lead/lag selector with pump run ratio settings
• Float switch logic choices: Smart or Relay, 3 or 4 float, SLLH or SLHL
• 5-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
