1-1/2″ Quiet Check Valve

  • 1/2 lb spring eliminates water hammer
  • Designed for horizontal and vertical installation
  • Rated for 50 PSI (115' of head)
  • View More Details

The 1-1/2″ full flow Quiet Check Valve with hose clamp ends provides backflow prevention in basement sump pump or drain pump applications. This valve can be installed in either a vertical or horizontal orientation in the discharge line.

Product SKU:

30-0241

UPC:

053514333775
1
year limited
warranty
Categories:
1
year limited
warranty

Have a question? Give us a call!

877-710-7867

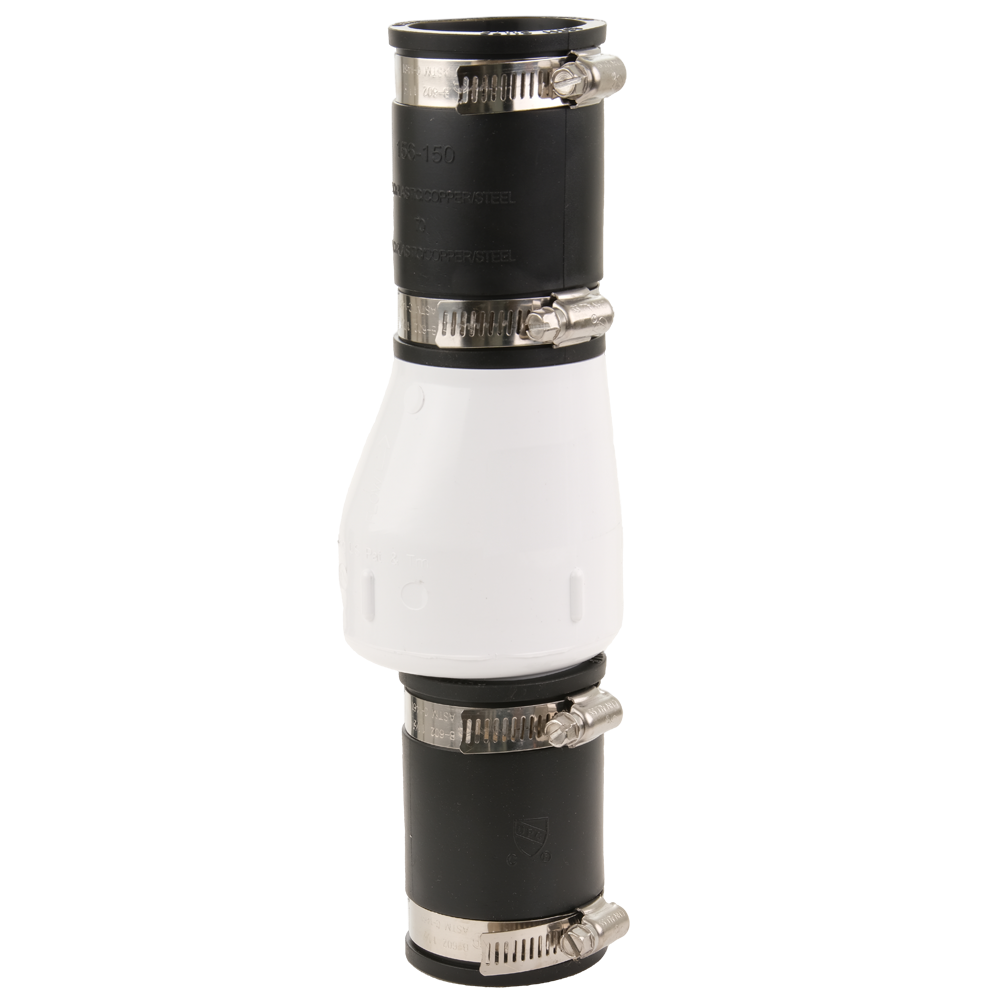

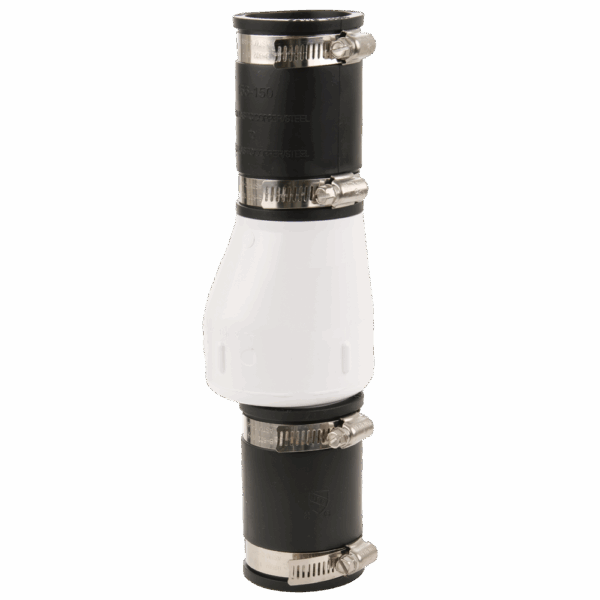

1-1/2" Quiet Check Valve

The 1-1/2″ full flow Quiet Check Valve with hose clamp ends provides backflow prevention in basement sump pump or drain pump applications. This valve can be installed in either a vertical or horizontal orientation in the discharge line.

Product Details

Standard check valves may produce a slamming sound when the water flow reverses in the discharge pipe after a pump stops.  This is commonly referred to as water hammer.  If you’d like to reduce water hammer, the Quiet Check Valve is a perfect solution.  Like any good check valve, it also protects your pump by providing reliable backflow prevention.

This quiet check valve offers the features provided in a standard check value with the addition of a hinged, spring-loaded flapper. This mechanism makes the flapper fully close against the fluid flow as the pump shuts down. Rapid closure against pressure before any flow reversal can occur eliminates the noise caused by hydraulic shock.

Designed for full flow with a clog-resistant design, it can be installed in a vertical or horizontal orientation. The hose clamp ends on the quiet check valve make it easy to install and simplifies pump removal when it becomes necessary.

Features and Benefits
  • Durably-constructed PVC check body
  • Hose clamp ends allow for easy installation and do not require the valve to be threaded into place
  • Hose clamp ends make it easy to splice this valve into an existing discharge line
  • The hose clamp ends simplifies pump removal
  • Designed for horizontal and vertical installation
  • 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications

Shipping Weight:

1.2 kg

Shipping Dimensions:

Height 3 1/2 cm   x   Width 3 3/4 cm   x   Length 10 1/2 cm.

Installation:

Horizontal or vertical installation

Valve Type:

Quiet check-hose clamps

Valve Size:

1-1/2"

PSI:

50 PSI (115' of head)

Color:

White
