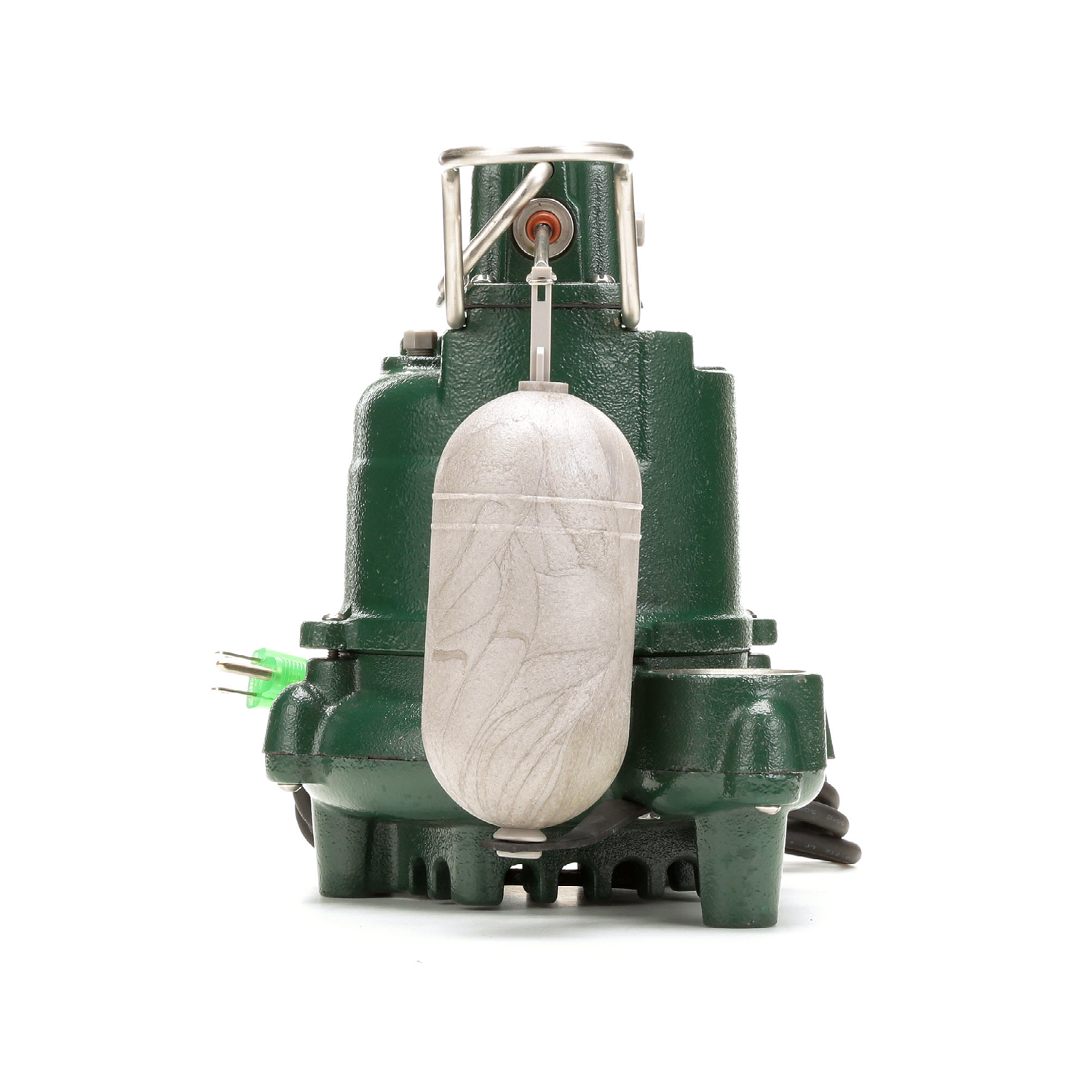

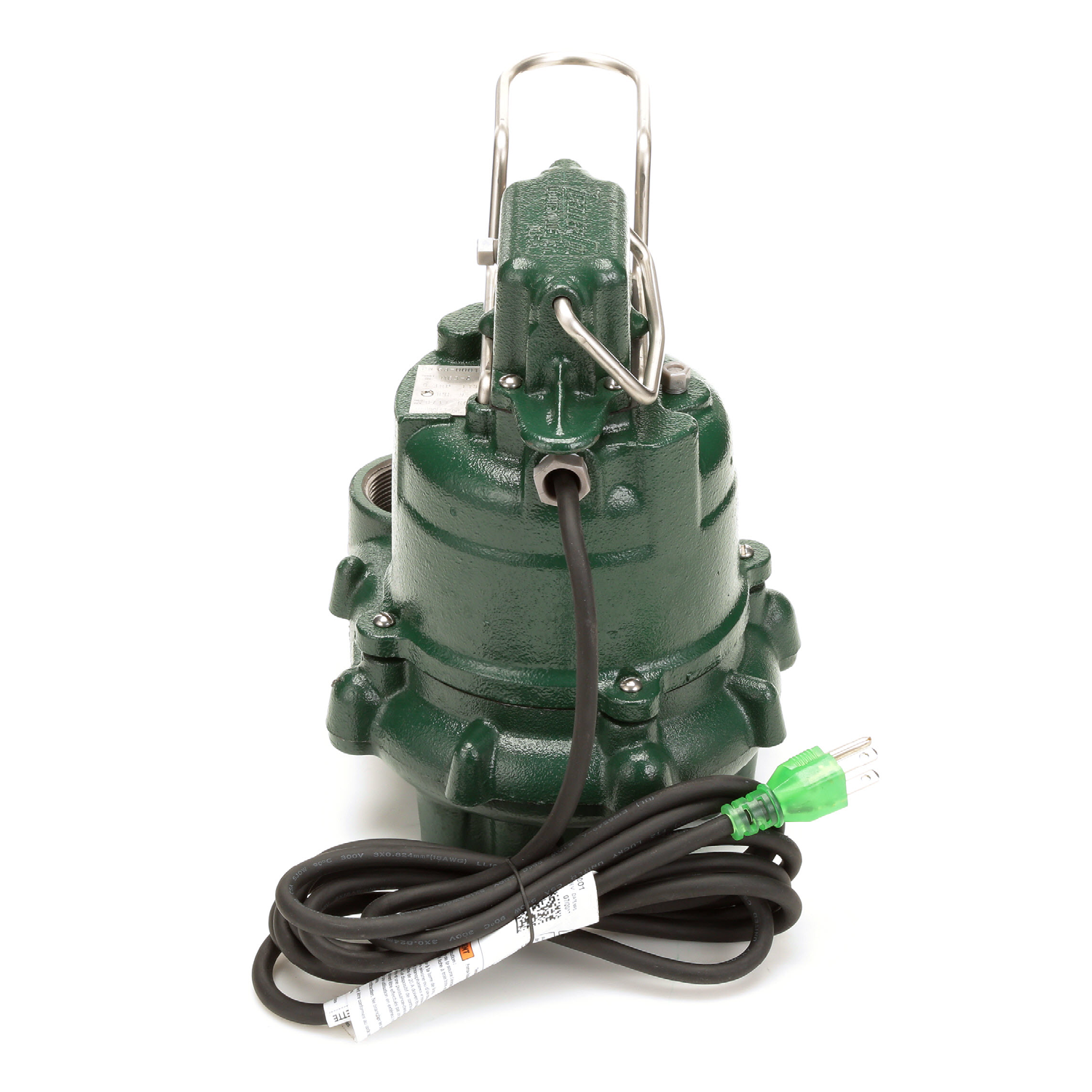

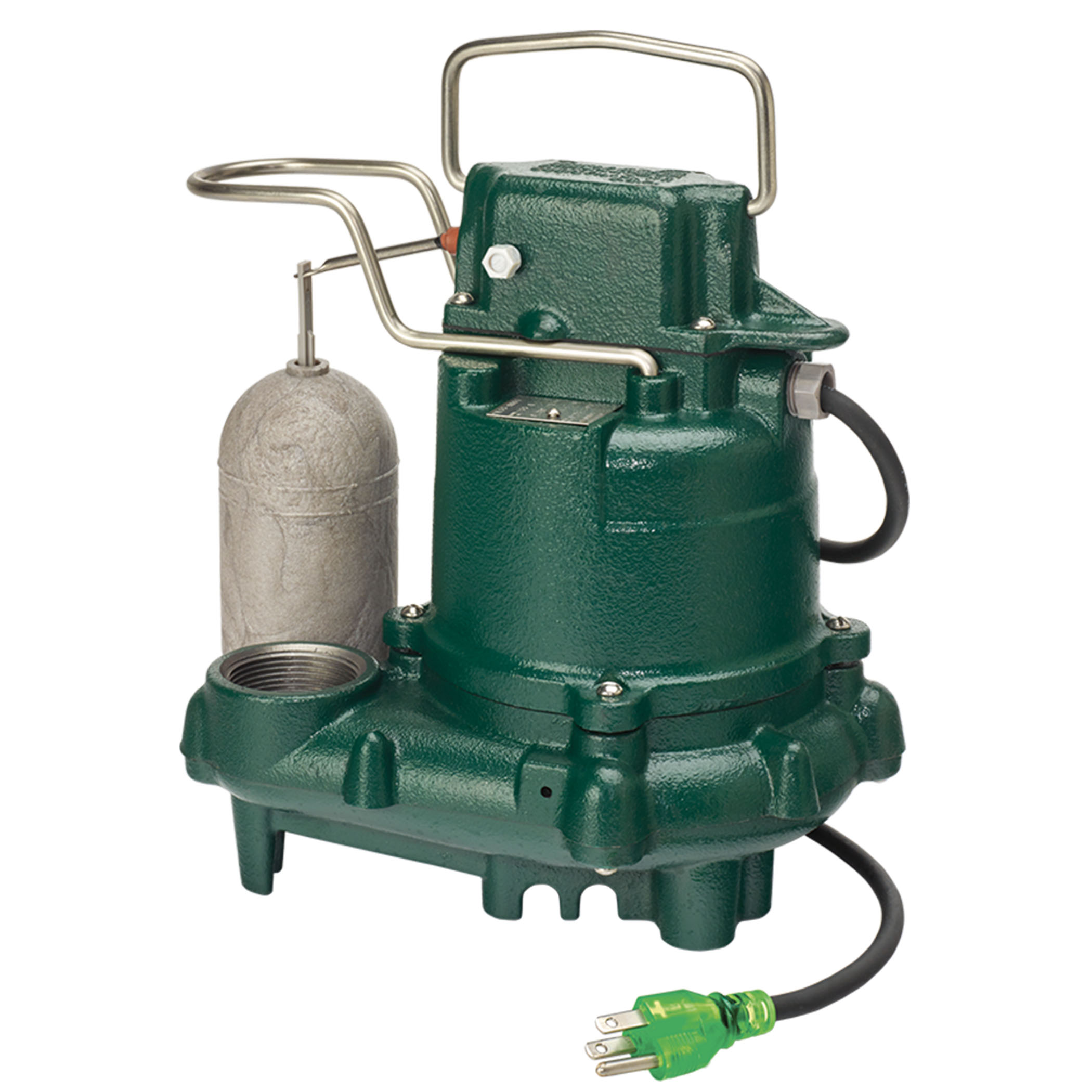

M63 Sump Pump with LED Plug, Cast Iron Base and Impeller

  • 115 V premium sump pump with Zoeller LED plug and enhanced switch for use in basement sump applications
  • 3/10 HP, oil-filled motor for optimal heat dissipation
  • 100% Factory Tested
  • View More Details

The Best-In-Class 3/10 HP Zoeller M63 automatic Sump Pump is designed to remove groundwater from basement sump applications. Backed by a 5-year warranty, this corrosion resistant submersible sump pump comes equipped with Zoeller LED Plug that allows you to check for power at a quick glance and will provide the dependability expected from a Zoeller pump. Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right out of the box.

Product SKU:

63-0001

UPC:

053514377281
5
year limited
warranty
Categories:
Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
5
year limited
warranty

Have a question? Give us a call!

877-710-7867
M63 Sump Pump with LED Plug, Cast Iron Base and Impeller
148102 Univ. Sump Pump Check Valve with Boot
M63 Sump Pump with LED Plug, Cast Iron Base and Impeller
148101 Plastic Check Valve
148138 High Water Alarm
M63 Sump Pump with LED Plug, Cast Iron Base and Impeller
020123 Universal Sump Pump Discharge Hose Kit

The Best-In-Class 3/10 HP Zoeller M63 automatic Sump Pump is designed to remove groundwater from basement sump applications. Backed by a 5-year warranty, this corrosion resistant submersible sump pump comes equipped with Zoeller LED Plug that allows you to check for power at a quick glance and will provide the dependability expected from a Zoeller pump. Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right out of the box.

Product Details

The Model M63 Sump Pump is a fully automatic 3/10 HP sump pump for use in basement sump applications.  This Zoeller 0.30 HP sump pump is packed with features, including the most advanced switch technology available.  The green Zoeller LED plug allows you to see that it has power even when it is installed in a dark basement or crawl space.

By design, the solid float cannot become waterlogged, so it is always buoyant and able to turn the pump on when necessary.  The identification tag, float guard, handle, switch arm, and hardware are made of high-quality corrosion resistant stainless steel.

Every pump is submerged in water and tested to its published performance curve. Designed to deliver peace of mind right out of the box.

Features and Benefits
  • Comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance
  • Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
  • Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
  • Cast iron vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
  • Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
  • Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
  • Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments

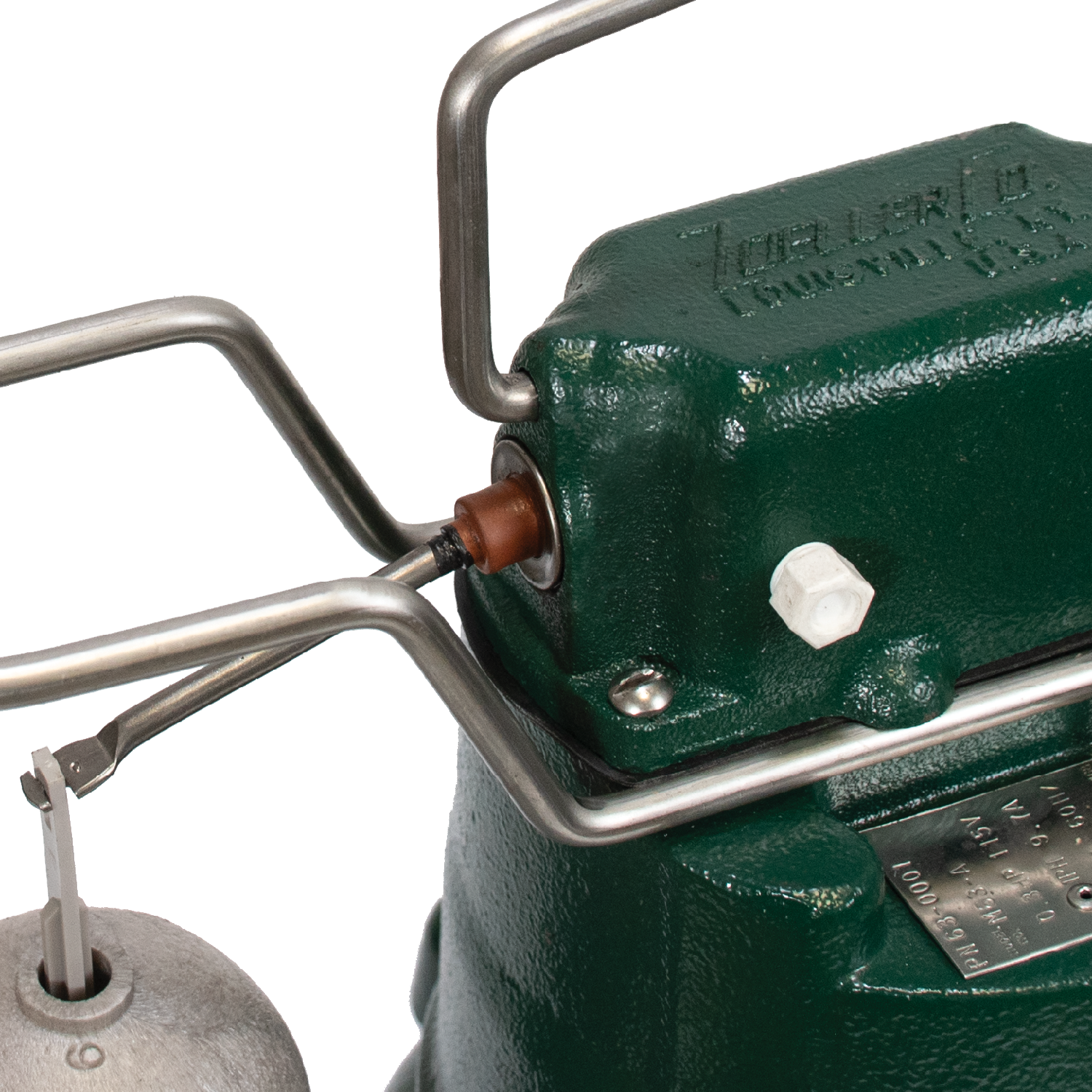

  • Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
  • 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
  • Comes with a 5-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
Product Specifications

Shipping Weight:

28.5 kg

Shipping Dimensions:

Height 10 1/4 cm   x   Width 7 3/4 cm   x   Length 10 1/4 cm.

Horsepower:

3/10 HP

Voltage:

115 V

Phase:

1 Ph

Amps:

9.7

Hertz:

60 Hz

RPM:

1550

Discharge:

1-1/2" NPT

Solids Handling:

1/2" (12 mm) spherical solids

On/Off Points:

7-1/4" (18.4 cm) / 3" (7.6 cm)

Impeller Type:

Vortex Impeller

Cord Length:

10' (3.1 m)
