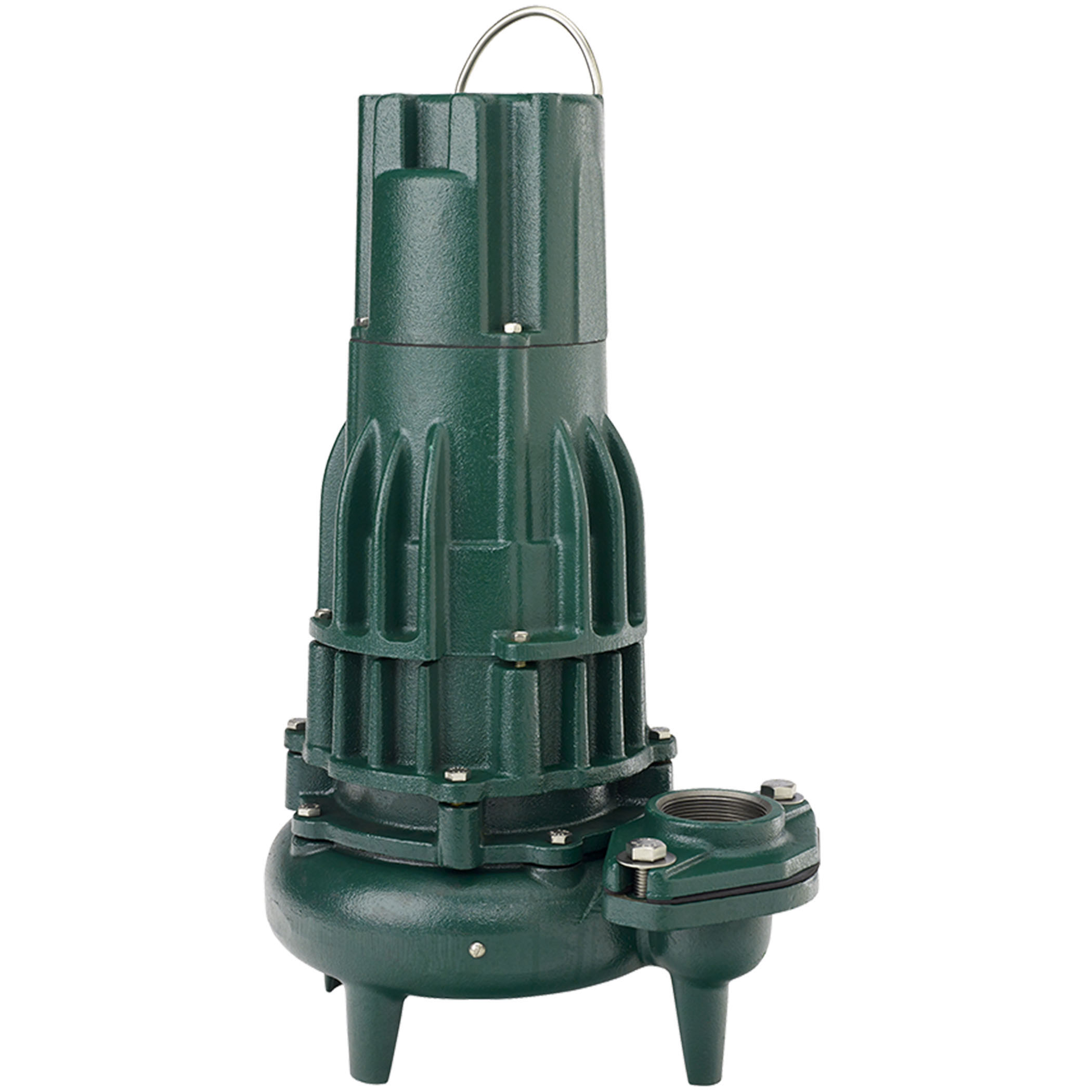

Model 292 Sewage Pump

The 1/2 HP Model N292 nonautomatic Sewage Pump is designed to remove raw sewage or stormwater in high head and flow lift station applications. This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 1-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Product SKU:

292-0002-1
Categories:

Have a question? Give us a call!

877-710-7867
Model 292 Sewage Pump

The 1/2 HP Model N292 nonautomatic Sewage Pump is designed to remove raw sewage or stormwater in high head and flow lift station applications. This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 1-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Product Details

Our nonautomatic Model N292 Sewage Pumps is designed to transfer sewage or stormwater in lift station applications.  The N292 is an ideal choice when high head or flow is required.  The Model 292 is built with a non-clogging vortex impeller allowing it to pass 2″ spherical solids.  This ensures reliable operation in the toughest sewage applications.

The N292 is built for long term, reliable performance.  The motor housing and adapter are cast iron and include the addition of cast-in place fins to maximize heat dissipation.  Heavy-duty construction and oversized bearings ensure the 292 is able to withstand even the most challenging sewage lift station applications.

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Product Specifications

Horsepower:

1/2 HP

Voltage:

115 V

Phase:

1 Ph

Amps:

15

Hertz:

60 Hz

RPM:

3450

Discharge:

2" NPT

Solids Handling:

2” (50 mm) spherical solids

On/Off Points:

Variable level- customer set

Impeller Material:

Cast iron

Impeller Type:

Vortex

Cord Length:

20' (6 m)
