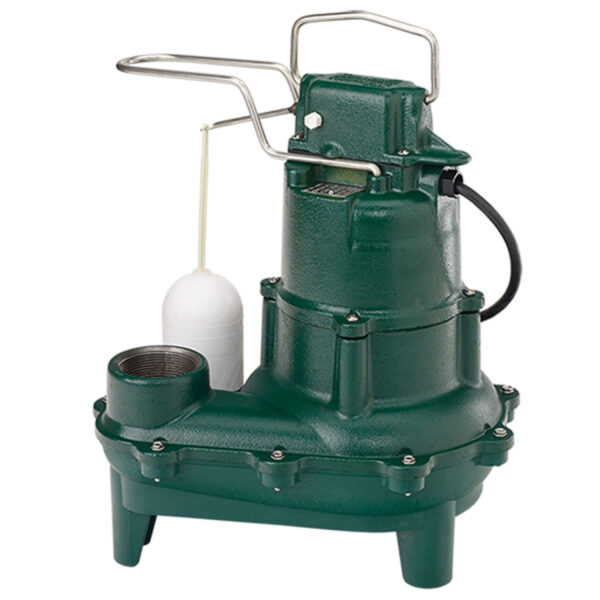

M264 Sewage Pump with 9′ Cord

  • Pompe de relevage automatique 115 V pour applications d'éjection d'eaux usées
  • 4/10 HP, oil-filled motor and cast iron motor housing for optimal heat dissipation
  • 100% Testé en usine
  • Voir plus de détails

The 4/10 HP Model M264 automatic Sewage Pump is designed to remove sewage from sewage ejector applications.  This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 3-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Référence produit :

264-0001

Code produit universel :

053514071684

3
année limitée
garantie
Catégories
3
année limitée
garantie

Une question ? Appelez-nous !

877-710-7867

The 4/10 HP Model M264 automatic Sewage Pump is designed to remove sewage from sewage ejector applications.  This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 3-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Détails du produit

Our Model M264 Sewage Pump with a is designed to remove raw sewage and wastewater in sewage ejector applications. The professional-grade, 4/10 HP 264 is a proven and economical sewage pump.  Known as the “Waste-Mate,” the M264 is a fully automatic float-operated sewage pump.  The white polypropylene float is solid so it cannot become waterlogged.  This ensures that it is always buoyant and able to turn the pump on when necessary.

The pump’s engineered plastic vortex impeller allows it to pass 2″ spherical solids.  The impeller’s smooth surface and clearance in relation to the pump housing allows water and solids to pass freely through the pump.  This combination of features lessens the chance of clogging and downtime.

The Model 264’s switch case, motor housing, and pump housing are each constructed of cast iron.   The pump’s identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 264 is able to withstand the demands of residential sewage ejector applications.

Chaque pompe est immergée dans l'eau et testée selon sa courbe de performance publiée, garantissant ainsi qu'elle répond à vos attentes et vous offre une tranquillité d'esprit dès la sortie de la boîte.

Caractéristiques et avantages
  • Moteur rempli d'huile et boîtier de moteur en fonte pour une dissipation optimale de la chaleur qui empêche la pompe de surchauffer
  • Pompe automatique avec un interrupteur à action rapide intégré, prédéterminé et éprouvé, qui facilite l'installation.
  • Impulseuse vortex en plastique technique résistant à la corrosion permettant le passage libre de solides sphériques de 2 pouces, ce qui évite le blocage et augmente la fiabilité.
  • Stainless steel float guard that prevents material and other solids in the waste stream from collecting on the float ensuring proper operation every time
  • Flotteur solide, flottant en polypropylène pour éliminer le risque d'infiltration d'eau, permettant au flotteur de rester flottant et fonctionnel à tout moment.
  • La finition époxy thermolaquée offre une résistance à la corrosion et prolonge la durée de vie de la pompe dans les environnements difficiles.
  • Vis en acier inoxydable, bras de commutateur, garde, poignée et quincaillerie pour éviter la rouille et la corrosion pendant toute la durée de vie de la pompe
  • 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected right out of the box
  • Livré avec une garantie limitée de 3 ans vous offrant une protection sur votre investissement et la tranquillité d'esprit que vous attendez d'un produit de qualité
Caractéristiques du produit

Expédition Poids:

35.5 kilogramme

Expédition Dimensions:

Hauteur 16 1/4 cm x largeur 11 cm x longueur 13 1/2 cm.

Chevaux-vapeur

4/10 HP

Tension :

115 V

Phase :

1 Ph

Ampères

9.4

Hertz :

60 Hz

RPM :

1725

Décharge :

2" NPT

Manutention de solides :

Solides sphériques de 2" (50 mm)

Points de marche/arrêt :

12-1/2" (31.8 cm) / 4-1/2" (11.4 cm)

Type de roue:

Vortex

Longueur du cordon :

9’ (2.7 m)
